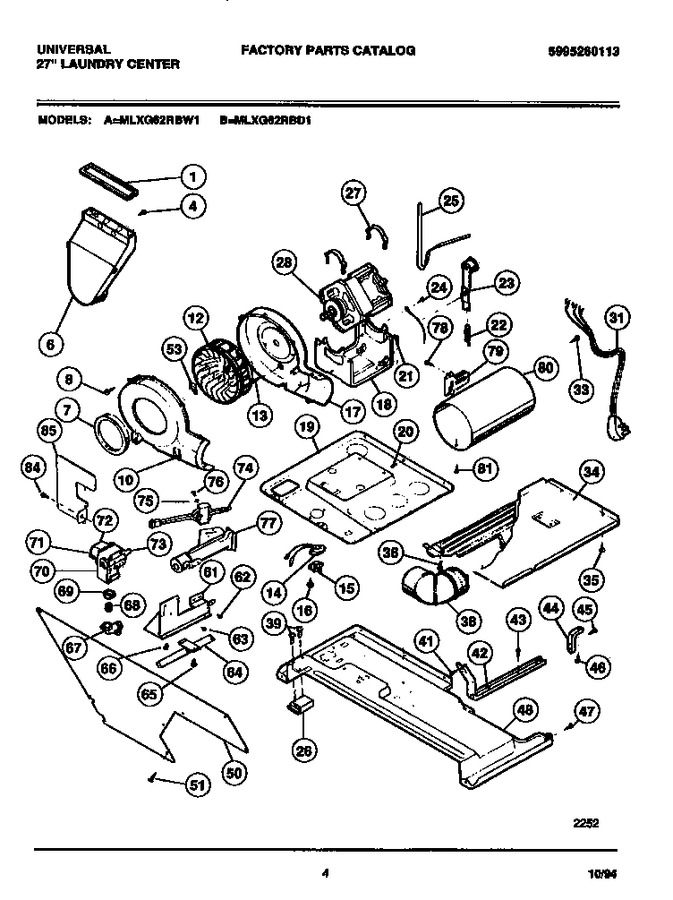

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131295200 | Sesl-air Duct To Front Panel |
|
$ 16.30 | |||||
| 4 | 131362400 | Screw (2) |
|
$ 9.41 | |||||
| 6 | 131311200 | Air Duct |
|
- | |||||
| 7 | 3204490 | Seal-hsg. To Air Duct |
|
$ 14.18 | |||||
| 8 | 3205245 | Screw (6) |
|
- | |||||
| 10 | 131287600 | Front-blower Housing |
|
- | |||||
| 12 | 131476300 | Blower Wheel (Replaces: 5303212513) |
|
Immediately | $ 47.00 | ||||
| 13 | 131168200 | Screw (3) |
|
Immediately | $ 14.18 | ||||
| 14 | 5303207400 | Heater-thermostat |
|
- | |||||
| 15 | 131322600 | Control Thermostat |
|
$ 74.52 | |||||
| 16 | 3204308 | Screw (2) |
|
- | |||||
| 17 | 5303271179 | Rear-blower |
|
- | |||||
| 18 | 131210401 | Motor Cradle |
|
- | |||||
| 19 | 3204311 | Upper Motor Cradle Pan |
|
- | |||||
| 20 | 131168200 | Screw-pan To Rear Panel (3) |
|
Immediately | $ 14.18 | ||||
| 21 | 3281077 | Screw-cradle To Pan |
|
- | |||||
| 22 | 3205241 | Idler Spring |
|
$ 75.83 | |||||
| 23 | 3205242 | Idler Arm Assy |
|
$ 205.60 | |||||
| 24 | 131168200 | Ground Screw |
|
Immediately | $ 14.18 | ||||
| 25 | 137292700 | Belt (Replaces: 5303283287) |
|
Immediately | $ 9.34 | ||||
| 26 | 5303212870 | Block-support |
|
- | |||||
| 28 | 5303283288 | Dryer Motor |
|
$ 251.69 | |||||
| 31 | 5303207402 | Power Cord |
|
- | |||||
| 33 | 131243700 | Ground Screw-rear Panel |
|
$ 3.36 | |||||
| 34 | 131243700 | Access Shield |
|
$ 3.36 | |||||
| 35 | 131168200 | Screw (6) |
|
Immediately | $ 14.18 | ||||
| 36 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 38 | 3204320 | Elbow |
|
- | |||||
| 39 | 131205100 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 41 | 131168200 | Screw-brkt To Side Panels (4) |
|
Immediately | $ 14.18 | ||||
| 42 | 3204324 | Interior Marriage Bracket (2) |
|
- | |||||
| 43 | 3204325 | Screw-bracket To Bracket (4) |
|
- | |||||
| 44 | 3204326 | External Bracket (2) |
|
$ 43.24 | |||||
| 45 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 46 | 3204325 | Screw |
|
- | |||||
| 47 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 48 | 131379201 | Bottom Pan |
|
- | |||||
| 50 | 3204329 | Safety Cover |
|
$ 40.16 | |||||
| 51 | 131168200 | Screw (7) |
|
Immediately | $ 14.18 | ||||
| 53 | 5304488479 | Clamp (Replaces: 5303304824) |
|
Immediately | $ 32.09 | ||||
| 61 | 5303207404 | Bracket-valve |
|
- | |||||
| 62 | 131243800 | Screw (2) |
|
$ 10.46 | |||||
| 63 | 131243800 | Screw (3) |
|
$ 10.46 | |||||
| 64 | 5303207405 | Pipe |
|
- | |||||
| 65 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 66 | 131243700 | Screw (4) |
|
$ 3.36 | |||||
| 67 | 5303207407 | Valve-shut Off |
|
- | |||||
| 68 | 5362791200 | Tall Piece |
|
$ 52.98 | |||||
| 69 | 08015194 | Nut-union |
|
- | |||||
| 70 | 5303207409 | Valve Gas |
|
$ 433.76 | |||||
| 71 | 5300622602 | Coil-secondary |
|
- | |||||
| 72 | 5308015680 | Coil-booster |
|
- | |||||
| 73 | 5303211036 | Orifice-natural Gas |
|
- | |||||
| 74 | 5303937186 | Ignitor (Replaces: 5303281151) |
|
$ 80.61 | |||||
| 75 | 3201209 | Washer |
|
- | |||||
| 76 | 3281178 | Screw |
|
- | |||||
| 77 | 5303207412 | Burner Assembly |
|
- | |||||
| 78 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 79 | 5303281135 | Sensor |
|
Immediately | $ 102.06 | ||||
| 80 | 5303207413 | Tube-burner |
|
- | |||||
| 81 | 131243700 | Screw |
|
$ 3.36 | |||||
| 84 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 85 | 5303212889 | Shield-heat |
|
- | |||||
| *87520 | 5303272164 | Receptacle |
|
- | |||||
| *87525 | 5303937054 | Conversion Kit-l.p. To Natural |
|
$ 94.24 | |||||
| *87526 | PCK3100 | Conversion Kit-natural To L.p. (Replaces: 5303937053) |
|
$ 60.25 | |||||
| 20A | 131168200 | Screw-pan To Shield & Side Panel (4) |
|
Immediately | $ 14.18 |
