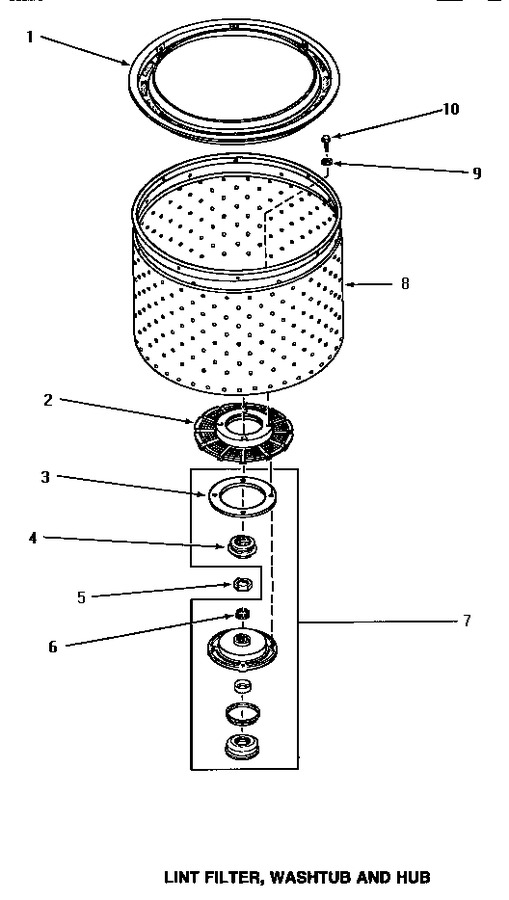

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	30944		Lint Filter		Appelez-nous	-
2	32998		Lint Filter		Appelez-nous	-
3	27125		Gasket		Appelez-nous	-
4	Y00000000		See Note Seal Head -- (included With 442p3 Kit)		Appelez-nous	-
5	Y29220		Locknut		Appelez-nous	-
6	29728		Splined Insert			Immediately	$ 6.95
7	646P3A		Hub & Seal Kit   (Replaces: 495P3)				$ 313.62
8	29074		Washtub, Porcelain		Appelez-nous	-
8	33295		Washtub, Porcelain		Appelez-nous	-
8	28138		Washtub, Stainless Steel		Appelez-nous	-
8	33245		Washtub, Stainless Steel		Appelez-nous	-
9	28094		Gasket		Appelez-nous	-
10	WPW10116787		Cap Screw   (Replaces: 27202)				$ 19.26
