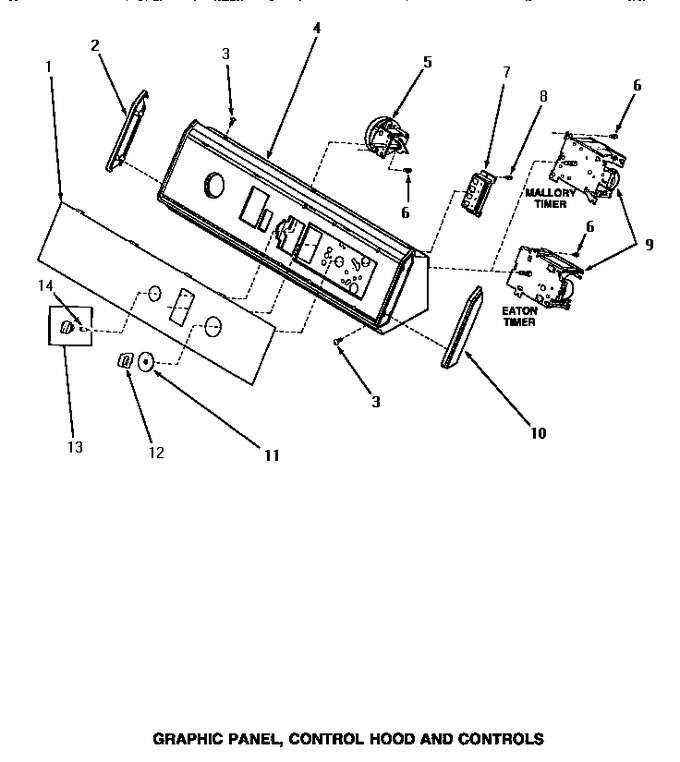

07 - Graphic Panel, Control Hood & Controls


08 - Hoses/back Fl Preventer & Vlv Brkt


09 - Lint Filter, Washtub & Hub


10 - Loading Door Switch & Bracket Assy


11 - Mixing Valve Assy


12 - Mixing Valve Assy


13 - Motor, Mtg Bracket, Belts & Idler Assy


14 - Outer Tub, Cover & Pressure Hose


15 - Power Cord & Wire Terminals


16 - Pump Assy/brkt/hoses & Siphon Break Kit


17 - Special Tools


18 - Special Tools


19 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31199		Panel,graphic		Appelez-nous	-
2	31249		Cap,end-l.h.-chrome		Appelez-nous	-
3	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
4	31810		Assy,hood & Mounting B		Appelez-nous	-
5	31266		Switch,pressure-rotary		Appelez-nous	-
6	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
7	31332		Assy,switch & Cover-te		Appelez-nous	-
8	52150		Screw, Thermostat		Appelez-nous	-
9	31239P		Timer,3 Cycle   (Replaces: 31239)			Immediately	$ 550.63
10	31248		Cap,end-r.h.-chrome		Appelez-nous	-
11	Y31503		Assy,timer Skirt		Appelez-nous	-
12	31281		Assy,knob-timer-black				$ 13.55
13	31287		Assy,knob-rotary-blk/b		Appelez-nous	-
14	10519		Retainer		Appelez-nous	-
	NOTE:		Siphon Break Kit Must Be Installed In Drain Hose If The Drain Receptacle Is Lower Than The Cabinet Top Of The Washer.		Appelez-nous	-
