01 - Cover

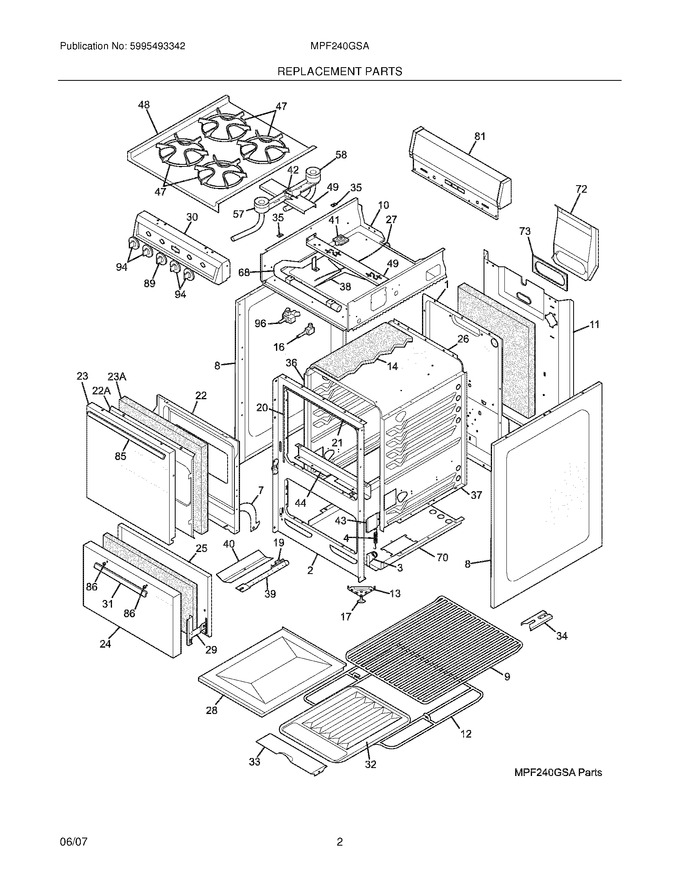

03 - Replacement Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304425318 | Panel,oven Back |
|
- | |||||
| 2 | 5304462625 | Frame,oven Front |
|
- | |||||
| 3 | 5303285746 | Bracket,door Spring Mtg ,(2) |
|
- | |||||
| 4 | 5303285924 | Spring,oven Door ,(2) |
|
- | |||||
| 7 | 5304402777 | Hinge,oven Door ,rh |
|
- | |||||
| 8 | 5303285710 | Panel,body Side ,white ,rh/lh ,(2) |
|
- | |||||
| 9 | 5303285756 | Rack,oven ,(2) |
|
- | |||||
| 10 | 5303285748 | Box Assembly,top Burner |
|
- | |||||
| 11 | 5303285754 | Back-main |
|
- | |||||
| 12 | 5303305180 | Rack,broiler Pan |
|
- | |||||
| 13 | 5304425315 | Gusset Assembly,base ,rh Front |
|
- | |||||
| 14 | 5304462636 | Insulation,oven Wrapper |
|
- | |||||
| 17 | 5303285762 | Leg,leveling ,(4) |
|
- | |||||
| 20 | 5303285764 | Seal,heat ,door Frame-side ,(2) |
|
- | |||||
| 21 | 5303285765 | Seal,heat ,door Frame-top |
|
$ 81.74 | |||||
| 22 | 5303285730 | Liner-oven Door |
|
- | |||||
| 23 | 5304462644 | Panel,oven Door |
|
- | |||||
| 24 | 5304462643 | Panel,broiler Door |
|
- | |||||
| 25 | 5304462640 | Liner,broiler Door |
|
- | |||||
| 26 | 5304462642 | Top,oven |
|
- | |||||
| 27 | 5304462653 | Tubing,oven Supply |
|
- | |||||
| 28 | 5304462624 | Floor,oven |
|
- | |||||
| 29 | 5304462631 | Hinge,broiler Door ,rh |
|
- | |||||
| 30 | 5303304946 | Panel,manifold |
|
- | |||||
| 31 | 5304462626 | Handle,broiler Door ,9`` |
|
- | |||||
| 32 | 5303305179 | Pan-broiler |
|
- | |||||
| 33 | 5303285737 | Cover,broiler Pan |
|
- | |||||
| 34 | 5303285771 | Anti-tip Kit |
|
- | |||||
| 35 | 5304400864 | Locator,maintop ,nylon ,(4) |
|
- | |||||
| 36 | 5304425319 | Panel,oven Side ,lh |
|
- | |||||
| 37 | 5304425317 | Panel,oven Side ,rh |
|
- | |||||
| 40 | 451R001P01 | Spreader,flame ,oven Burner |
|
- | |||||
| 42 | 5303285718 | Shield,top Pilot ,(2) |
|
- | |||||
| 43 | 5304416832 | Cover,door Spring ,(2) |
|
- | |||||
| 44 | 5304462648 | Support,oven Burner ,front |
|
- | |||||
| 47 | 5303285720 | Grate,top Burner ,(4) |
|
$ 201.02 | |||||
| 48 | 5304462652 | Top,main |
|
- | |||||
| 49 | 5303285758 | Support,top Burner |
|
- | |||||
| 70 | 5304462617 | Bottom,broiler |
|
- | |||||
| 72 | 5303285760 | Vent Box |
|
- | |||||
| 73 | 5303285761 | Gasket-vent Box |
|
- | |||||
| 81 | 5304462614 | Backguard |
|
- | |||||
| 85 | 5304462627 | Handle,oven Door ,21`` |
|
- | |||||
| 86 | 5303285740 | Spacer,handle ,white ,oven Door ,(2) |
|
- | |||||
| 89 | 5304462638 | Knob,thermostat ,oven |
|
- | |||||
| 94 | 5304462639 | Knob,valve ,top Burner ,(4) |
|
- | |||||
| 22A | 5304462616 | Baffle,heat ,oven Door |
|
- | |||||
| 23A | 5304462635 | Insulation,oven Door |
|
- | |||||
| F16 | 5304462659 | Valve,top Burner ,(4) |
|
- | |||||
| F19 | 5304462645 | Pilot Assembly,oven Burner |
|
- | |||||
| F38 | 5303285728 | Pilot Assembly,top Burner |
|
- | |||||
| F39 | 5304462620 | Burner,oven |
|
- | |||||
| F41 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| F57 | 5303297990 | Burner,top ,front ,(2) |
|
- | |||||
| F58 | 5303297991 | Burner,top ,rear ,(2) |
|
- | |||||
| F68 | 5304462647 | Pipe,manifold |
|
- | |||||
| F96 | 5304462128 | Thermostat,oven |
|
- | |||||
| NI | 5304462650 | Saddle,thermostat Mtg. |
|
- | |||||
| NI | 5304462651 | Screw,thermostat Mtg. |
|
- | |||||
| NI | 5304462104 | Kit Assembly,lp Conversion |
|
- | |||||
| NI | 5304462630 | Hinge,broiler Door ,lh |
|
- | |||||
| NI | 5303285968 | Clip,oven Bulb ,(2) |
|
- | |||||
| NI | 5304462615 | Baffle,broiler Door |
|
- | |||||
| NI | 5303285766 | Seal,heat ,door Frame-btm |
|
- | |||||
| NI | 5304462634 | Injector,orifice ,oven Burner |
|
- | |||||
| NI | 5303285774 | Insulation,oven Burner |
|
- | |||||
| NI | 5304462658 | Screw,valve Mtg. ,(4) |
|
- | |||||
| NI | 5304462657 | Saddle,valve Mtg. ,(4) |
|
- | |||||
| NI | 5304425313 | Gusset Assembly,base ,rear ,(2) |
|
- | |||||
| NI | 5304425314 | Gusset Assembly,base ,lh Front |
|
- | |||||
| NI | 5304462619 | · Side,burner Box ,rh |
|
- | |||||
| NI | 5304462633 | Injector,orifice ,top Burner ,(4) |
|
- | |||||
| NI | 5304462618 | · Side,burner Box ,lh |
|
- | |||||
| NI | 5304425316 | Stiffener,body Side ,(2) |
|
- | |||||
| NI | 5304402778 | Hinge,oven Door ,lh |
|
- |
