SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

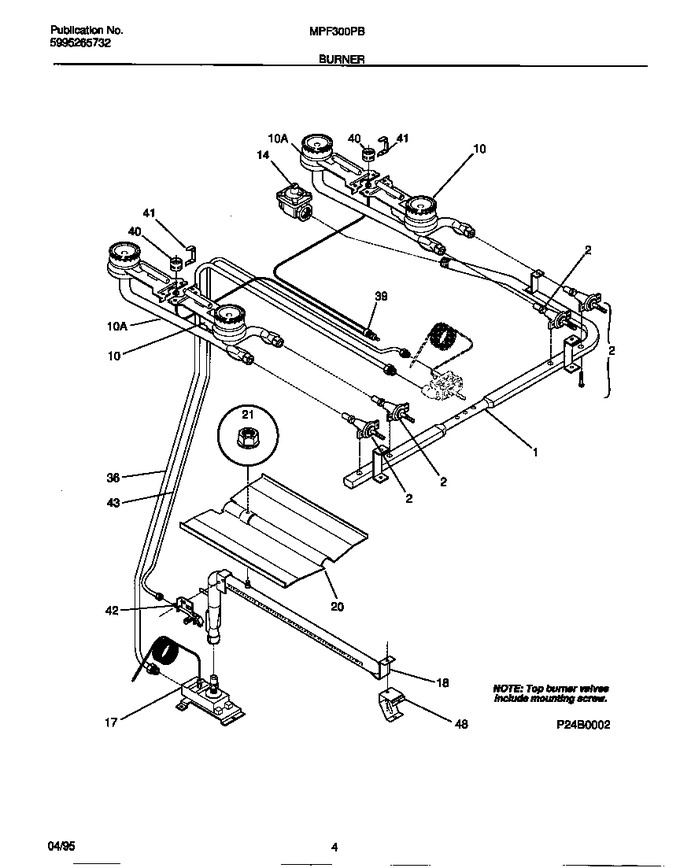

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303280588		Manifold-pipe		Appelez-nous	-
10	5304506427		Burner-top, Front   (Replaces: 316039002)				$ 101.63
10	5304506426		Burner-top, Rear   (Replaces: 316039003)				$ 100.05
14	5303016997		Regulator-pressure		Appelez-nous	-
17	5303280593		Valve,safety				$ 405.51
18	5303280585		Burner-oven		Appelez-nous	-
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	316060800		Tubing,thermo/safety `3/8 ,alum		Appelez-nous	-
39	5303211133		Tubing-top Pilot, Dual				$ 88.20
40	5303211191		Cap-top Pilot, (2)				$ 35.75
41	3202798		Shield-pilot, Stainless Steel, (2)				$ 55.18
42	5303280589		Pilot,oven				$ 107.89
43	3203398		Tubing`thermo/pilot `3/16 ,alum		Appelez-nous	-
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
2A	316031700		Valve-top Burner, 2 Position, (4), W/screws		Appelez-nous	-
2B	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
