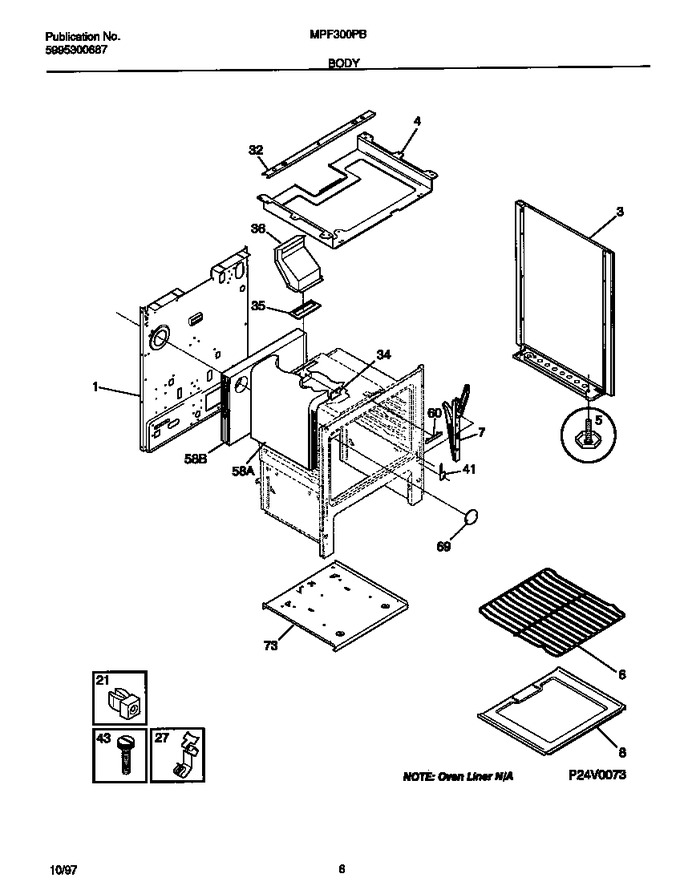

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
3	316081030		Panel-bodyside, Almond, Rh		Appelez-nous	-
3	316081031		Panel-bodyside, Almond, Lh (not Illustrated)		Appelez-nous	-
4	316067206		Burner Box		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
32	3203394		Channel-burner Supt.		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	08067965		Gasket-flue		Appelez-nous	-
36	3131909		Flue		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
58	3017142		Insulation, Oven Wrapper				$ 193.50
58	3203541		Insulation, Oven Back		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
69	3051218		Plate,oven Light		Appelez-nous	-
73	5303281627		Base-broiler		Appelez-nous	-
*63481	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*63482	316073400		Plate,weight ,(3)		Appelez-nous	-
*63483	3131903		Bumper				$ 55.36
5A	5303203397		Screw-leveling				$ 14.49
5B	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5C	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5D	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
7A	316007007		Hinge-oven Door, (2)		Appelez-nous	-
7B	3203010		Clip, Hinge, (4) (not Illustrated)   (Replaces: 5303012323)				$ 14.89
8A	5303212540		Panel-oven Bottom		Appelez-nous	-
8B	316064600		Support, Oven Bottom (not-illustrated)				$ 18.95

    View Diagram in Separate Window       Print Part List
