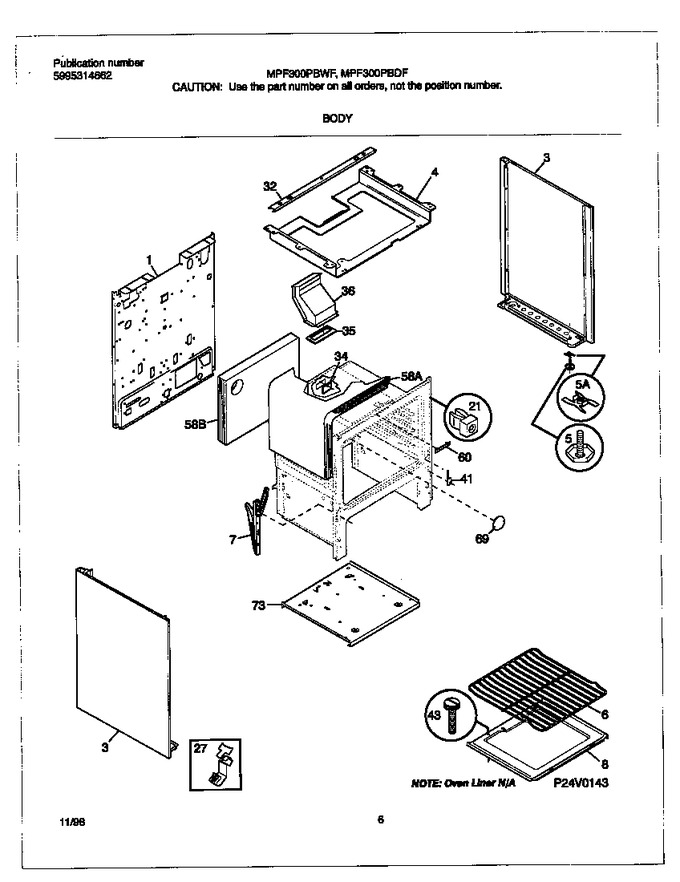

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
3	316081030		Panel-bodyside, Almond, Rh		Appelez-nous	-
4	316067206		Burner Box		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
5	5303288460		Nut,t-type,leveling Screw				$ 27.14
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007007		Hinge-oven Door, (2)		Appelez-nous	-
8	5303212540		Panel-oven Bottom		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
32	3203394		Channel-burner Supt.		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	08067965		Gasket-flue		Appelez-nous	-
36	316103901		Flue,black		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
58	3203541		Insulation, Oven Back		Appelez-nous	-
58	3017142		Insulation, Oven Wrapper				$ 193.50
60	5303015372		Cover-oven Front		Appelez-nous	-
69	3051218		Plate,oven Light		Appelez-nous	-
185	316112900		Shield,thermo Bulb		Appelez-nous	-
*16444	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*16445	316073400		Plate,weight ,(3)		Appelez-nous	-
*16447	316081031		Panel-bodyside,almond ,lh		Appelez-nous	-
*16448	3934058		Anti-tip Kit				$ 98.75
*16449	316116000		Screw,anti-tip ,(4)   (Replaces: 316078600)				$ 12.89
*16450	316064600		Support,oven Bottom				$ 18.95
