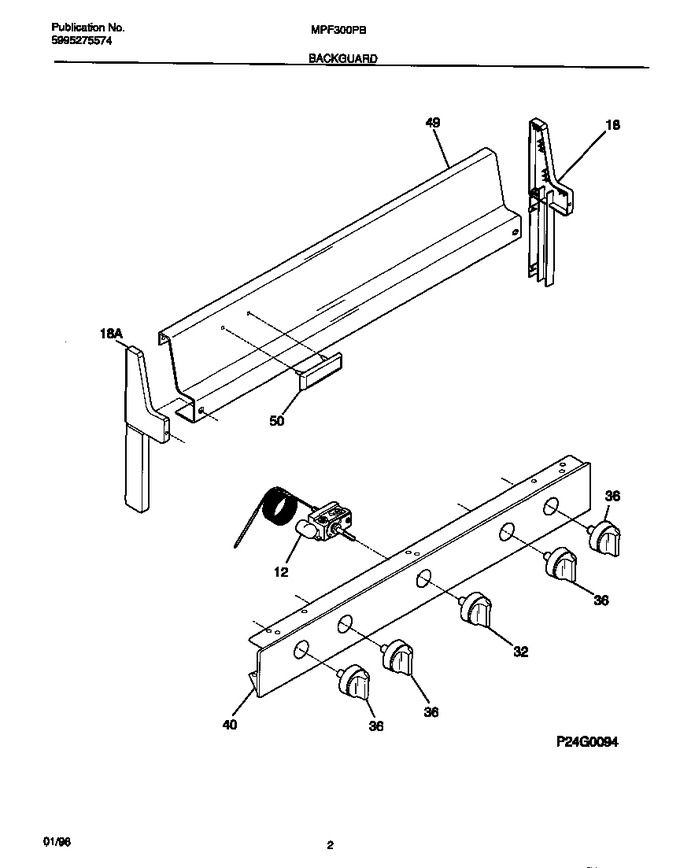

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 3202802 | End Cap,black ,rh |
|
- | |||||
| 18 | 3202801 | End Cap,black ,lh |
|
- | |||||
| 32 | 5303296842 | Knob-thermostat |
|
- | |||||
| 36 | 5303288187 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 319009214 | Panel-manifold |
|
- | |||||
| 49 | 3051199 | Panel-backguard, White |
|
- | |||||
| 50 | 316067003 | Bezel-nameplate |
|
- | |||||
| *46120 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *46121 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| 12A | 5303935014 | Thermostat,oven ,w/screws |
|
- | |||||
| 12B | 5303280590 | Screw-thermostat, (2) (not Illustrated) |
|
- |
