SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

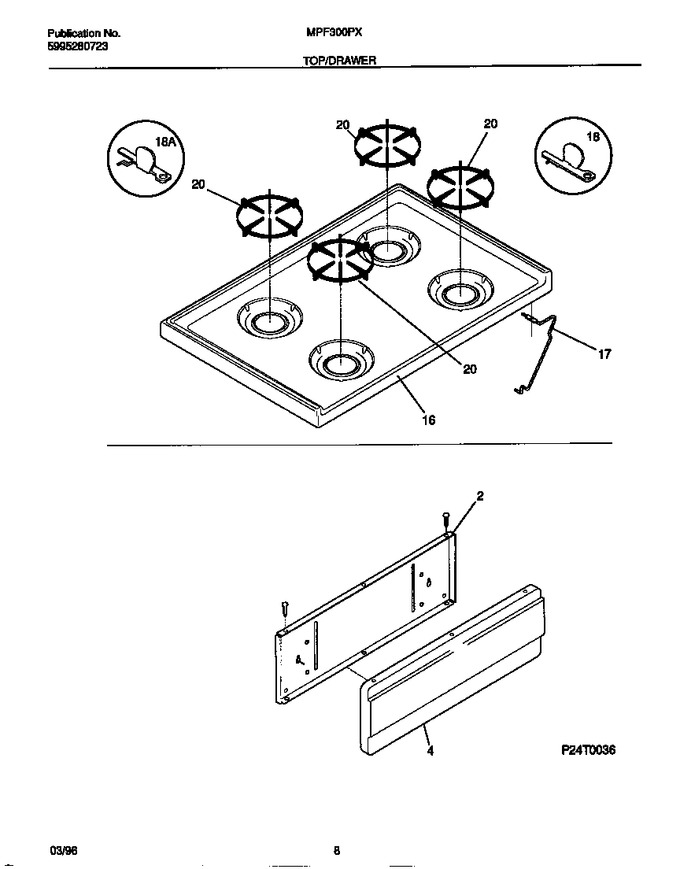

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3131975		Shield-panel		Appelez-nous	-
4	3051201		Panel-dummy, White		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
16	3206214		Main Top - White		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
20	316055800		Grate, (4)				$ 43.99
*71164	3018702		Plug-button,glide ,(4)		Appelez-nous	-
*71165	3131190		Cover-vent		Appelez-nous	-
*71166	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
