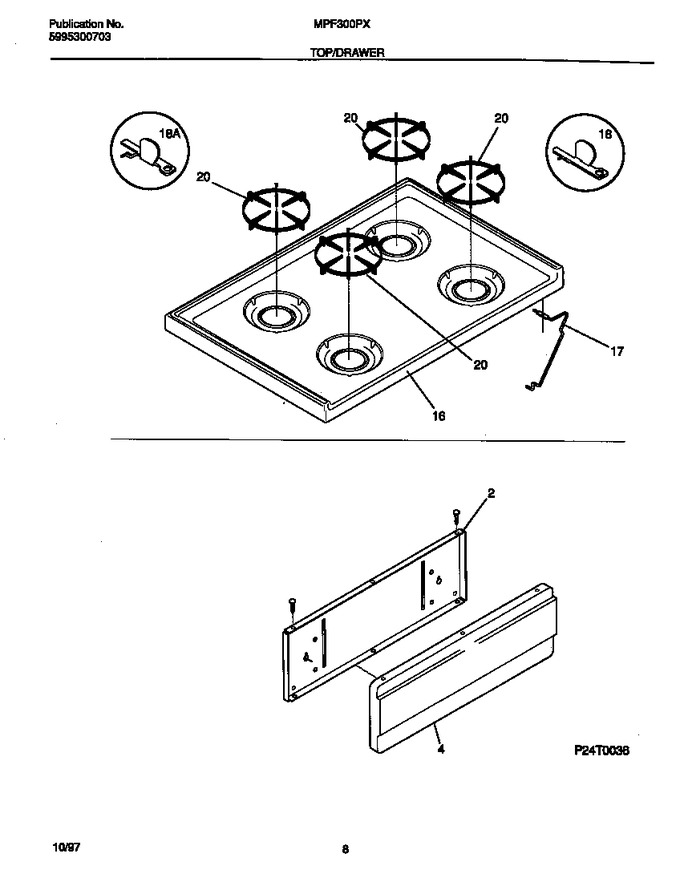

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 3051201 | Panel-dummy, White |
|
- | |||||
| 16 | 3206214 | Main Top - White |
|
- | |||||
| 17 | 316066900 | Rod-maintop Support |
|
$ 66.31 | |||||
| 18 | 08067746 | Bracket-hinge,main Top Lh |
|
- | |||||
| 18 | 08067747 | Bracket-hinge,main Top Rh |
|
- | |||||
| 20 | 316055800 | Grate, (4) |
|
$ 43.99 | |||||
| *74685 | 3018702 | Plug-button,glide ,(4) |
|
- | |||||
| *74686 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *74687 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *74688 | 316519700 | Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *74689 | 5303280311 | Screw, Waf Hd Sdr, 10-32 X 5/16, (2) |
|
$ 6.62 | |||||
| *74690 | 3131190 | Cover-vent |
|
- |
