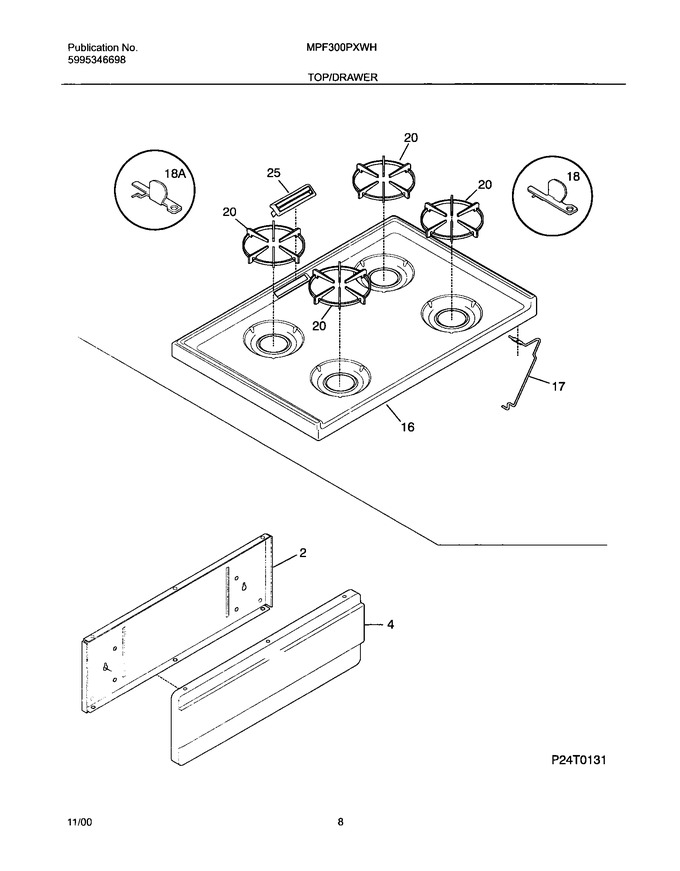

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303288582		Shield-drawer,liner ,galv Steel ,front Panel		Appelez-nous	-
4	3051201		Panel-dummy, White		Appelez-nous	-
16	316104301		Main Top,white				$ 168.16
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
20	316055800		Grate, (4)				$ 43.99
25	316104500		Cover-vent,metal ,chrome		Appelez-nous	-
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
NI	3018702		Plug-button,glide ,(4)		Appelez-nous	-
