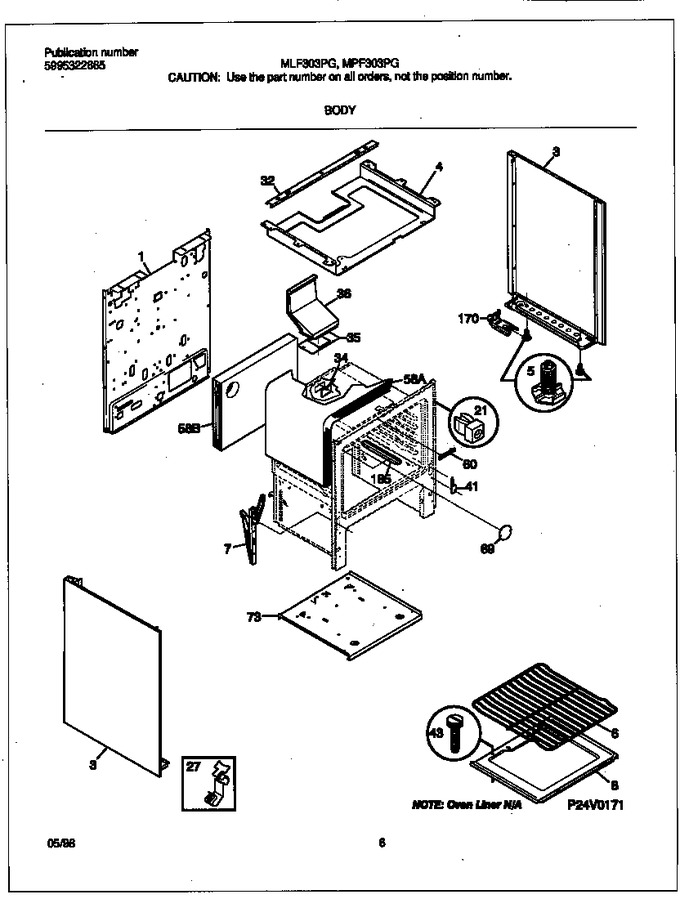

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316029412 | Back-main |
|
- | |||||
| 4 | 316067206 | Burner Box |
|
- | |||||
| 5 | 316107300 | Screw-leveling |
|
- | |||||
| 6 | 316067902 | Rack,oven |
|
Immediately | $ 103.10 | ||||
| 7 | 316007007 | Hinge-oven Door, (2) |
|
- | |||||
| 8 | 5303212540 | Panel-oven Bottom |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 32 | 3203394 | Channel-burner Supt. |
|
- | |||||
| 34 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 35 | 316542102 | Gasket,flue (Replaces: 316116600) |
|
$ 12.13 | |||||
| 36 | 316103901 | Flue,black |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1.438 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 58 | 3203541 | Insulation, Oven Back |
|
- | |||||
| 58 | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 69 | 3051218 | Plate,oven Light |
|
- | |||||
| 73 | 316109902 | Base,low Broil |
|
$ 131.25 | |||||
| 185 | 316112900 | Shield,thermo Bulb |
|
- | |||||
| *51608 | 316519700 | Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold (Replaces: 316021108) |
|
$ 10.02 | |||||
| *51609 | 316073400 | Plate,weight ,(3) |
|
- | |||||
| *51610 | 316064600 | Support,oven Bottom |
|
$ 18.95 | |||||
| *51611 | 5303288570 | Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2 |
|
- | |||||
| 170A | 316112005 | Anti-tip Bracket (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| 170B | 316116000 | Screw-anti Tip, 1.75`` Concrete |
|
$ 12.89 | |||||
| 3A | 316081034 | Panel-bodyside,white ,rh |
|
- | |||||
| 3B | 316081035 | Panel-bodyside,white ,lh |
|
- |
