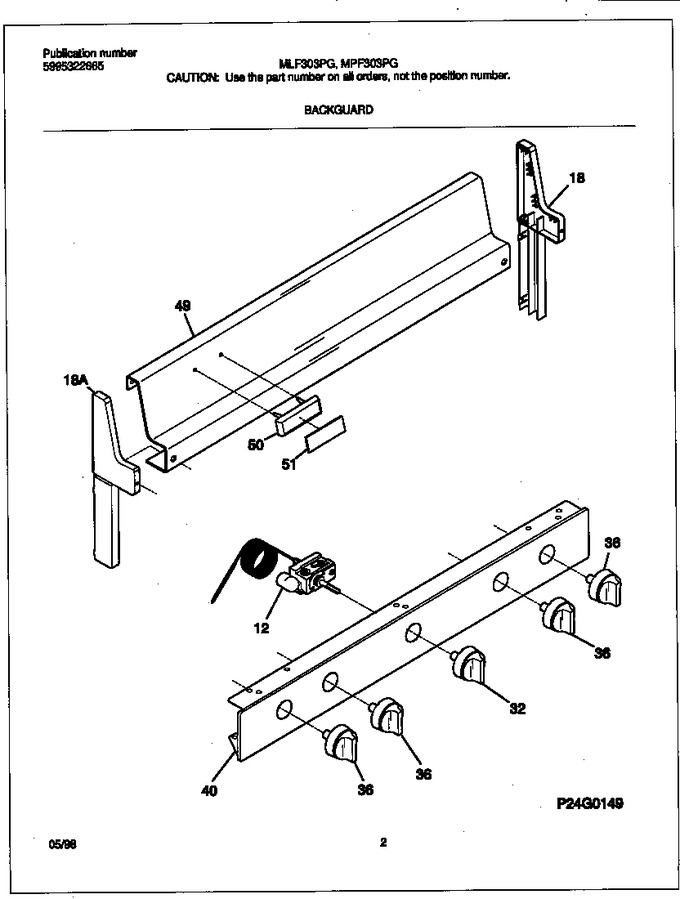

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
18	3202801		End Cap,black ,lh		Appelez-nous	-
18	3202802		End Cap,black ,rh		Appelez-nous	-
32	316102304		Knob Thermostat,black				$ 71.47
36	316009008		Knob-top Valve, (4)				$ 54.86
40	319009214		Panel-manifold		Appelez-nous	-
49	3051199		Panel-backguard, White		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095419		Nameplate		Appelez-nous	-
*51600	3016755		End Cap, Black, (2)		Appelez-nous	-
*51601	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*51602	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*51603	316105805		Installation Instructions		Appelez-nous	-
*51604	316112500		Template, Anti-tip Bracket				$ 3.55
*51605	5303280590		Screw,thermostat ,(2)		Appelez-nous	-
