SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

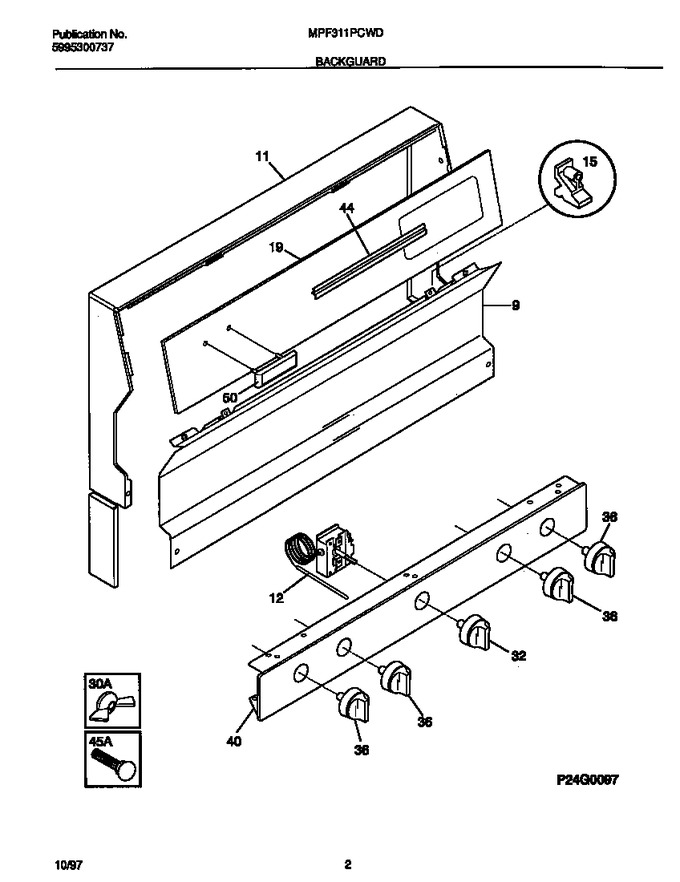

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316043601		Trim-splasher, White		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	5303280590		Screw-thermostat, (2) (not Illustrated)		Appelez-nous	-
12	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034107		Panel, Control, Metal		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
32	316102306		Knob-thermostat, Black				$ 81.90
36	316009008		Knob-top Valve, (4)				$ 54.86
40	319009214		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
*83360	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*83361	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
