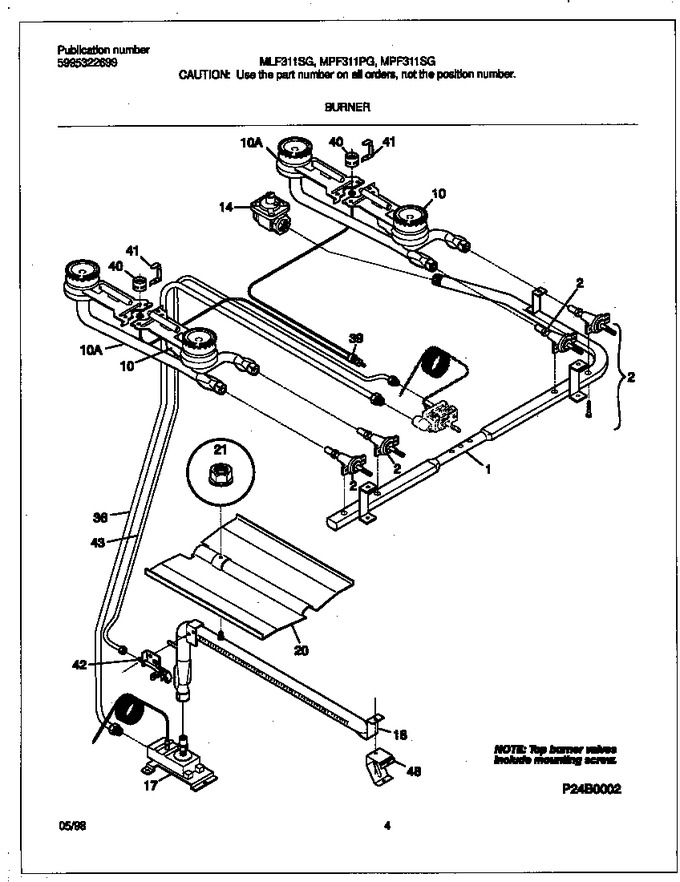

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316113501		Manifold Pipe		Appelez-nous	-
2	316098600		Valve-top Burner, 2-position, (4)		Appelez-nous	-
10	5304506426		Burner-top, Rear   (Replaces: 316039003)				$ 100.05
10	5304506427		Burner-top, Front   (Replaces: 316039002)				$ 101.63
14	316113600		Regulator-pressure		Appelez-nous	-
17	5303280593		Valve,safety				$ 405.51
18	5303280585		Burner-oven		Appelez-nous	-
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	316060800		Tubing,thermo/safety `3/8 ,alum		Appelez-nous	-
39	5303211133		Tubing-top Pilot, Dual				$ 88.20
40	5303211191		Cap-top Pilot, (2)				$ 35.75
41	3202798		Shield-pilot, Stainless Steel, (2)				$ 55.18
42	5303280589		Pilot,oven				$ 107.89
43	3203398		Tubing`thermo/pilot `3/16 ,alum		Appelez-nous	-
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
*18126	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*18127	316048200		Screw-,hex Washer Head ,1/4-20 X 0.31 ,w/gasket		Appelez-nous	-
