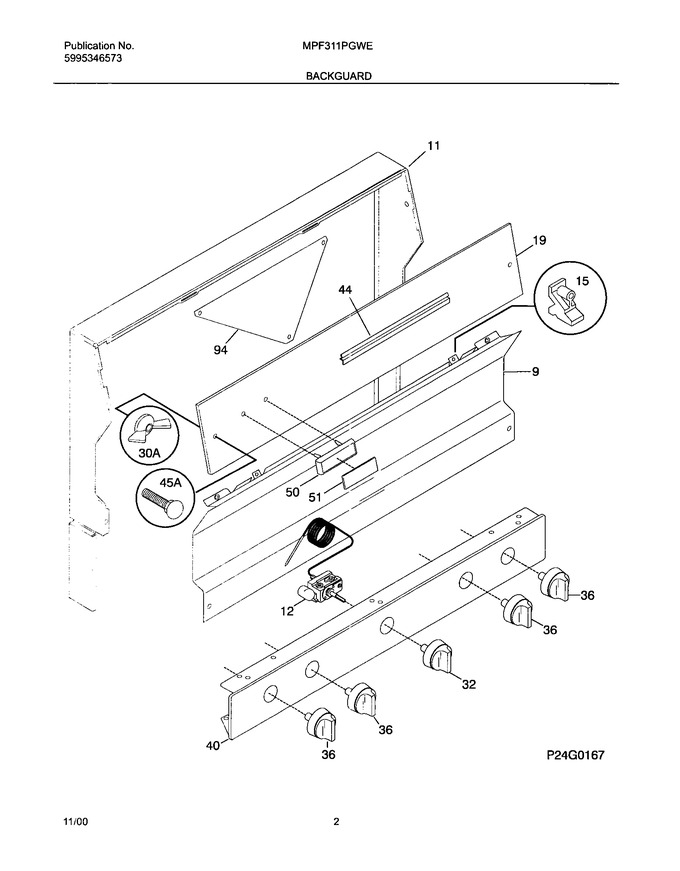

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316133501		Trim-splasher,white ,lower		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
19	316034107		Panel, Control, Metal		Appelez-nous	-
32	316102304		Knob Thermostat,black				$ 71.47
36	316009008		Knob-top Valve, (4)				$ 54.86
40	319009214		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095420		Nameplate,frigidaire ,black		Appelez-nous	-
94	316111300		Stiffener,backguard		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056902		Bolt-fastener, Nylon		Appelez-nous	-
F12	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280590		Screw,thermostat ,(2)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
