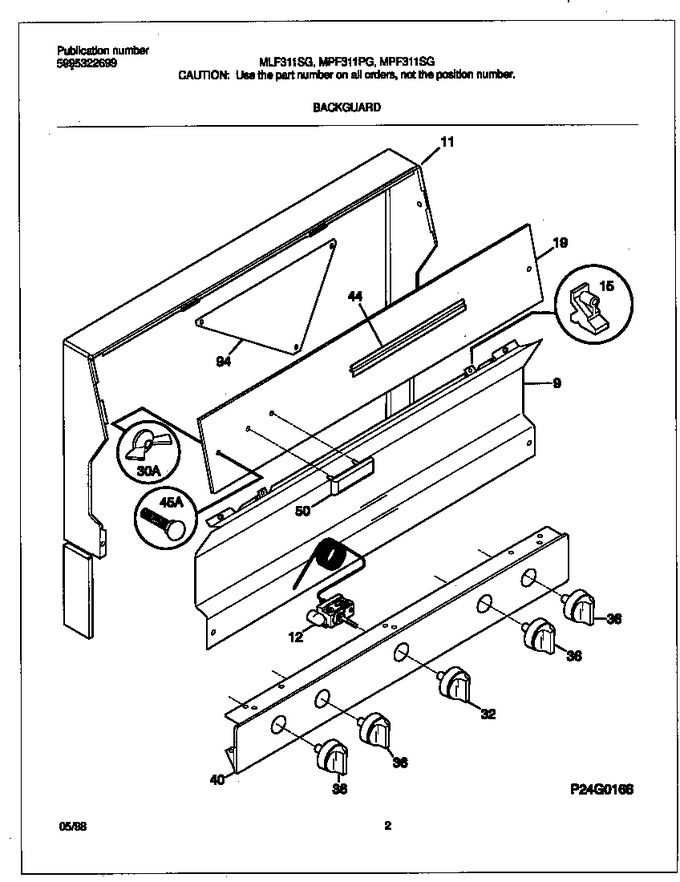

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316043602		Trim-splasher, Almond		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034107		Panel, Control, Metal		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
32	316102304		Knob Thermostat,black				$ 71.47
36	316009008		Knob-top Valve, (4)				$ 54.86
40	319009214		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
94	316111300		Stiffener-bg,metal ,zinc		Appelez-nous	-
*18120	3016755		End Cap, Black, (2)		Appelez-nous	-
*18121	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*18122	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*18123	316105805		Installation Instructions		Appelez-nous	-
*18124	316112500		Template, Anti-tip Bracket				$ 3.55
*18125	5303280590		Screw,thermostat ,(2)		Appelez-nous	-
