02 - Backguard, Cooktop And Burner Parts

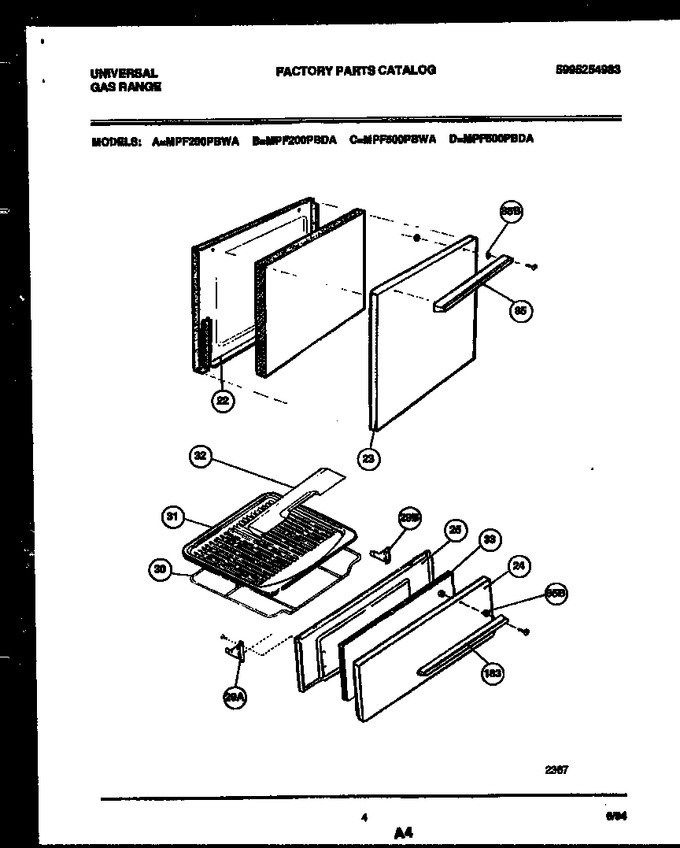

03 - Door And Broiler Drawer Parts
04 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 5303285730 | Liner-oven Door |
|
- | |||||
| 23 | 5303285707 | Panel-oven Door, Almond |
|
- | |||||
| 24 | 5303285709 | Panel-broiler Drawer, Almond |
|
- | |||||
| 25 | 5303285731 | Liner-broiler Drawer |
|
- | |||||
| 30 | 5303305180 | Broiler Rack |
|
- | |||||
| 31 | 5303305179 | Pan-broiler |
|
- | |||||
| 32 | 5303285737 | Broiler Cover |
|
- | |||||
| 33 | 5303285742 | Insulation-broiler |
|
- | |||||
| 29A | 5303305177 | Hinge-broiler Drawer, Lh |
|
- | |||||
| 29B | 5303305178 | Hinge-broiler Drawer, Rh |
|
- |
