SELECT A DIAGRAM

01 - Cover

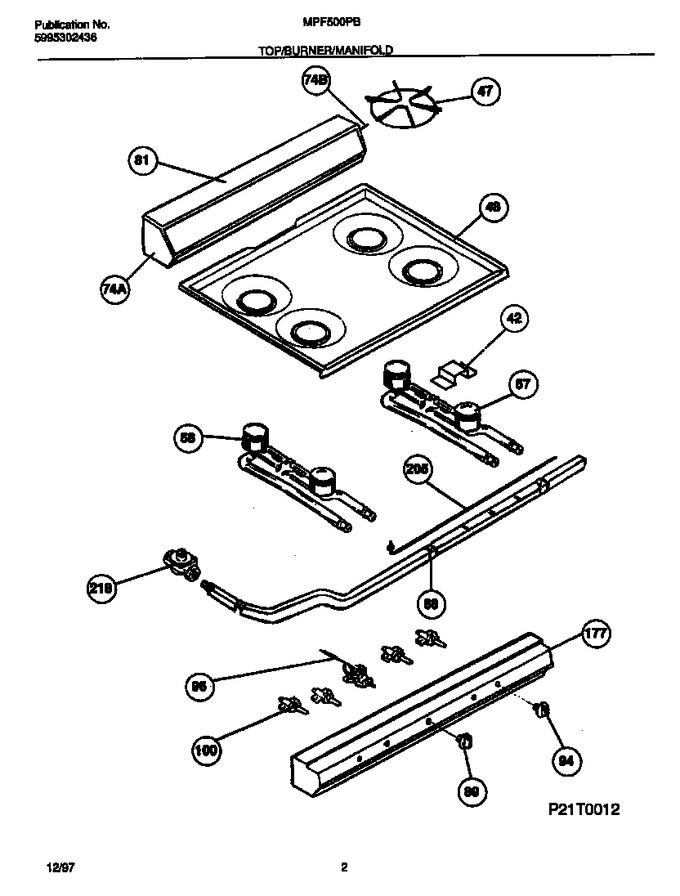

02 - Top/burner/manifold


03 - Door/drawer


04 - Body


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	5303285718		Shield-top Pilot		Appelez-nous	-
47	5303285720		Grate-top Burner				$ 201.02
48	5303285703		Main Top, Almond		Appelez-nous	-
57	5303297990		Burner-top, Front		Appelez-nous	-
58	5303297991		Burner-top, Rear		Appelez-nous	-
68	5303285723		Manifold Pipe		Appelez-nous	-
74	5303285715		End Cap, Backguard, Rh		Appelez-nous	-
74	5303285714		End Cap, Backguard, Lh		Appelez-nous	-
81	5303285713		Panel-backguard, Shell, Almond		Appelez-nous	-
89	5303285724		Knob-thermostat				$ 91.72
94	5303285725		Knob-top Valve		Appelez-nous	-
96	5303285726		Thermostat-oven		Appelez-nous	-
100	5303285727		Valve-top Burner				$ 218.03
177	5303304946		Panel-control, Almond		Appelez-nous	-
205	5303285728		Top Pilot Assy		Appelez-nous	-
218	5303285729		Regulator-pressure		Appelez-nous	-
*49840	5303285950		Bezel		Appelez-nous	-
*49841	5303285962		Pal Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
