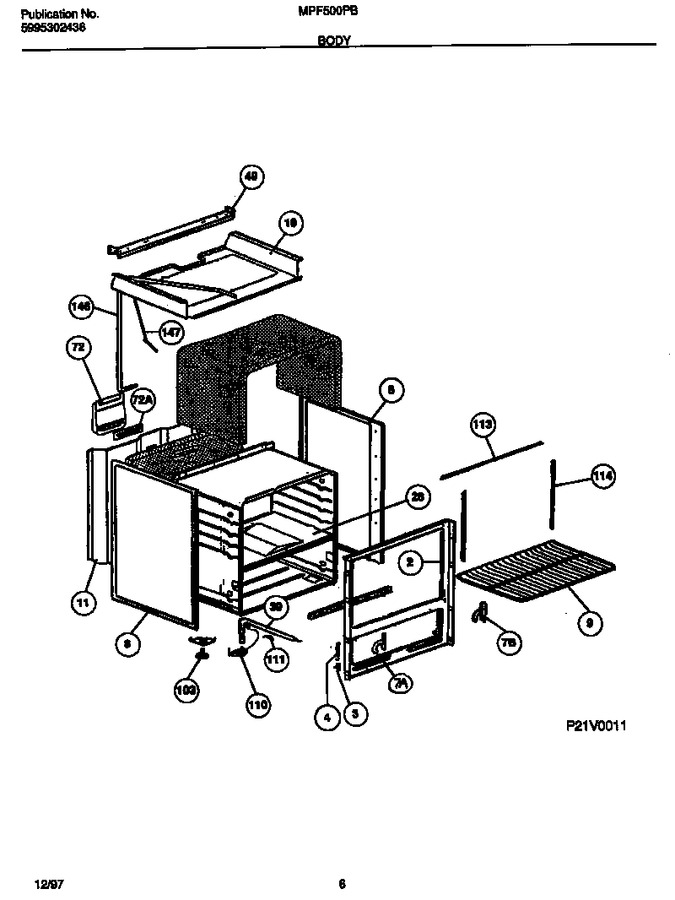

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	N/A		Frame-front		Appelez-nous	-
3	5303285746		Bracket-spring		Appelez-nous	-
4	5304402779		Spring-oven Door		Appelez-nous	-
7	5304402777		Hinge-oven Door Assy, Rh		Appelez-nous	-
7	5304402778		Hinge-oven Door Assy, Lh		Appelez-nous	-
8	5303285710		Panel-bodyside, White		Appelez-nous	-
9	5303285756		Rack-oven		Appelez-nous	-
10	5303285748		Burner Box		Appelez-nous	-
11	5303285754		Back-main		Appelez-nous	-
28	5303285755		Bottom-oven		Appelez-nous	-
39	5303285753		Burner-oven		Appelez-nous	-
49	5303285758		Support-burner		Appelez-nous	-
72	5303285761		Gasket-vent Box		Appelez-nous	-
72	5303285760		Vent Box		Appelez-nous	-
103	5303285762		Leveler-leg		Appelez-nous	-
110	5303285749		Valve-oven Safety				$ 477.96
111	5303285763		Pilot Assembly-oven				$ 206.69
113	5303285765		Seal-oven Door, Top				$ 81.74
114	5303285764		Seal-oven Door, Sides		Appelez-nous	-
146	5303285767		Tubing-oven Supply		Appelez-nous	-
147	5303285768		Tubing-oven Pilot		Appelez-nous	-
*49842	5303285771		Anti-tip Kit		Appelez-nous	-
*49843	5303285772		Insulation-oven Wrapper		Appelez-nous	-
*49844	5303285773		Insulation-oven Back		Appelez-nous	-
*49845	5303285774		Insulation-oven Front		Appelez-nous	-
*49846	5303285764		Seal-oven Door		Appelez-nous	-
*49847	5303285775		Hinge Pin-oven Door		Appelez-nous	-
*49848	5303285776		Cotter Pin-oven Door		Appelez-nous	-
