SELECT A DIAGRAM

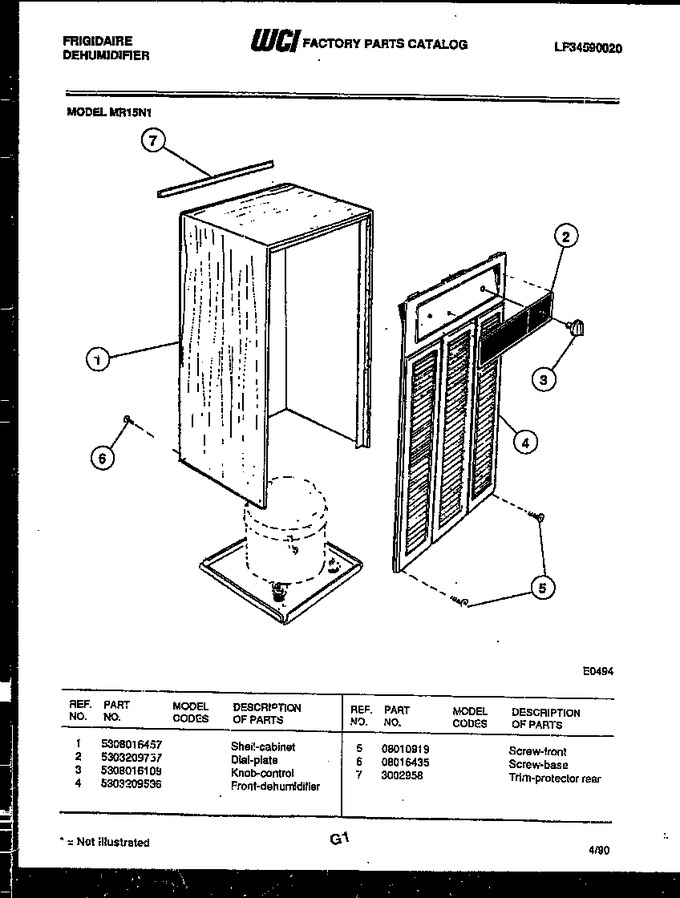

02 - Cabinet And Control Parts
03 - Air Control Parts
04 - Water And Condensing Parts
05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016457 | Shell-cabinet |
|
- | |||||
| 2 | 5303209757 | Dial-plate |
|
- | |||||
| 3 | 5308016109 | Knob-control |
|
- | |||||
| 4 | 5303209536 | Front-dehumidifier |
|
- | |||||
| 5 | 08010919 | Screw-front |
|
- | |||||
| 6 | 08016435 | Screw-base |
|
- | |||||
| 7 | 3002958 | Trim-protector Rear |
|
- |
