SELECT A DIAGRAM

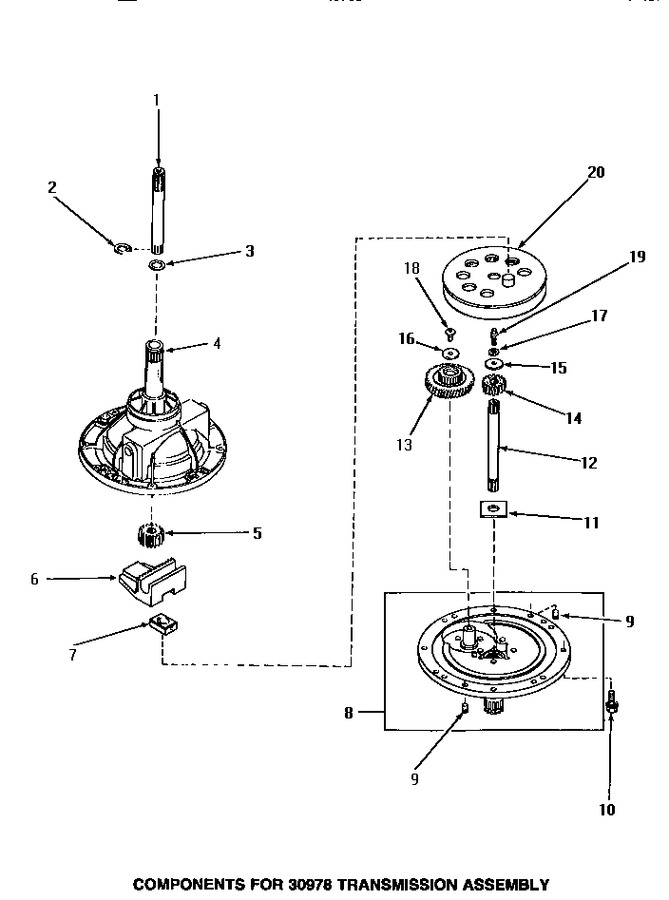

01 - 30978 Transmission Assy Components


02 - 33227 Transmission Assy Components


03 - Agitator, Drive Bell & Seal Kit


04 - Brg Hsg/brake/pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Front Panel, Cabinet & Base


07 - Graphic Panel, Control Hood & Controls


08 - Hoses/back Fl Preventer & Vlv Brkt


09 - Lint Filter, Washtub & Hub


10 - Loading Door Switch & Bracket Assy


11 - Mixing Valve Assy


12 - Mixing Valve Assy


13 - Motor, Mtg Bracket, Belts & Idler Assy


14 - Outer Tub, Cover & Pressure Hose


15 - Power Cord & Wire Terminals


16 - Pump Assy/brkt/hoses & Siphon Break Kit


17 - Special Tools


18 - Special Tools


19 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	36570P		Output Shaft   (Replaces: 29134)				$ 81.41
2	27197		Ring,retaining				$ 6.95
3	20212		Washer,.626idx1.00odx.		Appelez-nous	-
4	30037		Assy,transmission Casexreplace		Appelez-nous	-
5	RO81		Pinion,agitator   (Replaces: 27003)			Immediately	$ 27.76
6	201664		Rack   (Replaces: Y31526)				$ 74.76
7	26493		Slide			Immediately	$ 8.56
8	30945		Assy,transmission Covexreplace		Appelez-nous	-
9	27172		Pin,dowel		Appelez-nous	-
10	31709		Screw,1/4-20x1 Hx Ser/		Appelez-nous	-
11	27016		Washer		Appelez-nous	-
12	27081		Shaft,input		Appelez-nous	-
13	29161		Gear,reduction		Appelez-nous	-
14	Y29160		Pinion,drive		Appelez-nous	-
15	26509		Washer				$ 6.95
16	29260		Washer				$ 2.50
17	21456		Lockwasher,1/4 Intshkp				$ 154.99
18	29273		Screw,1/4-20 X 3/8		Appelez-nous	-
19	27030		Screw,1/4-20 Special		Appelez-nous	-
20	DE81-05916A		Assy,gear & Stud   (Replaces: 26577)				$ 65.22
NI	28434P		Loctite		Appelez-nous	-
NI	27243P		Oil,cw Transmission F-				$ 84.57

    View Diagram in Separate Window       Print Part List
