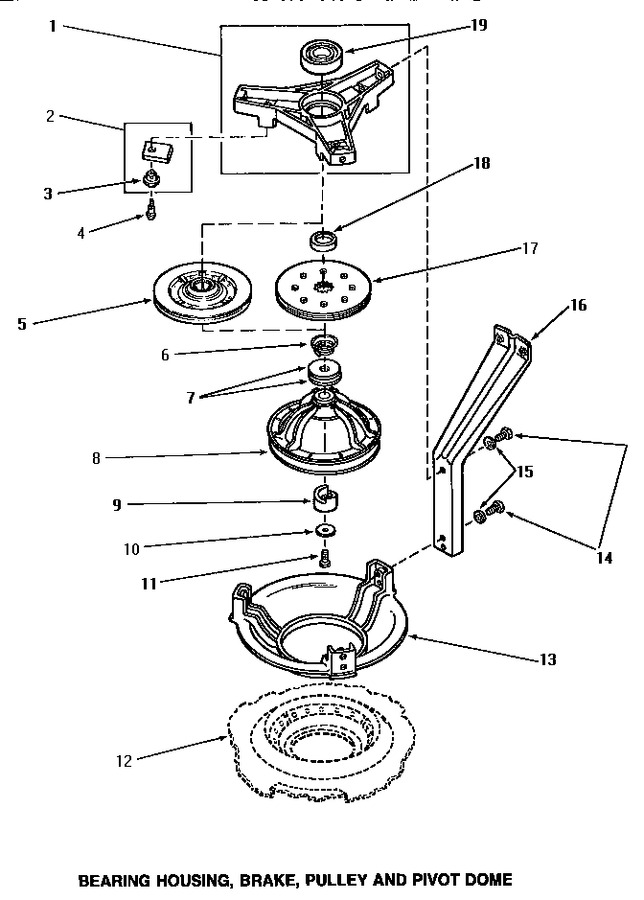

04 - Brg Hsg/brake/pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Front Panel, Cabinet & Base


07 - Graphic Panel, Control Hood & Controls


08 - Hoses/back Fl Preventer & Vlv Brkt


09 - Lint Filter, Washtub & Hub


10 - Loading Door Switch & Bracket Assy


11 - Mixing Valve Assy


12 - Mixing Valve Assy


13 - Motor, Mtg Bracket, Belts & Idler Assy


14 - Outer Tub, Cover & Pressure Hose


15 - Power Cord & Wire Terminals


16 - Pump Assy/brkt/hoses & Siphon Break Kit


17 - Special Tools


18 - Special Tools


19 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35746		Bearing Housing Assembly   (Replaces: 28913)				$ 112.35
2	348P3		Brake Pad Kit		Appelez-nous	-
3	29993		Sleeve,anti-rotation		Appelez-nous	-
4	26547		Screw,10-24 Shoulder		Appelez-nous	-
5	31961P		Brake		Appelez-nous	-
6	33435		Spring,conical				$ 9.63
7	32651		Washer		Appelez-nous	-
8	34232P		Pulley Assembly   (Replaces: 30260)				$ 91.40
9	8530072		Helix   (Replaces: 27018)				$ 35.31
10	26509		Washer				$ 6.95
11	27220		Screw				$ 2.30
12	Y00000000		See Note Base Assembly		Appelez-nous	-
13	27124		Dome,pivot		Appelez-nous	-
14	30016		Screw		Appelez-nous	-
15	04366		Lockwasher,5/16intshkp		Appelez-nous	-
16	27090		Leg,support				$ 22.28
17	26556P		Brake Assembly		Appelez-nous	-
18	27176		Spacer				$ 1.30
19	28944RP		Bearing   (Replaces: 28944)			Immediately	$ 34.88
