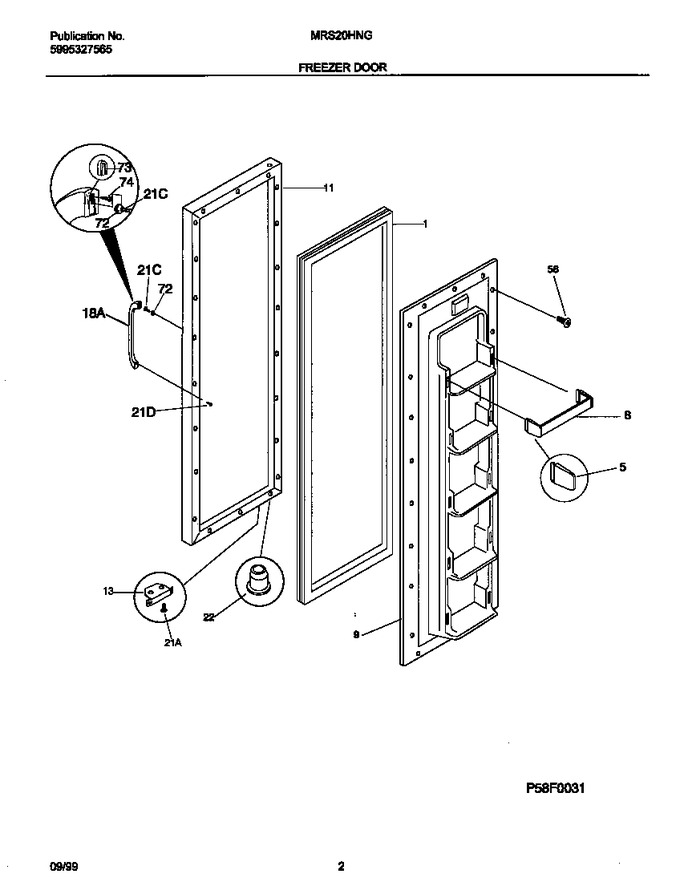

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734301 | Gasket-frzr Door, Almond Magnetic |
|
- | |||||
| 5 | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| 8 | 215472200 | Rack-door, W/end Caps, (5) |
|
$ 129.05 | |||||
| 9 | 5303288955 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 5303917865 | Panel-frzr Door, Almond, W/foam Insulatn |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 18 | 218717402 | Handle-door, Almond, W/block & Screw |
|
- | |||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 21 | 215659600 | Screw-handle Mtg,hex Head ,10-32 X 0.500 |
|
- | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd ,10-16 X 0.500 ,spec/hi-lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *23120 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
