01 - Cover

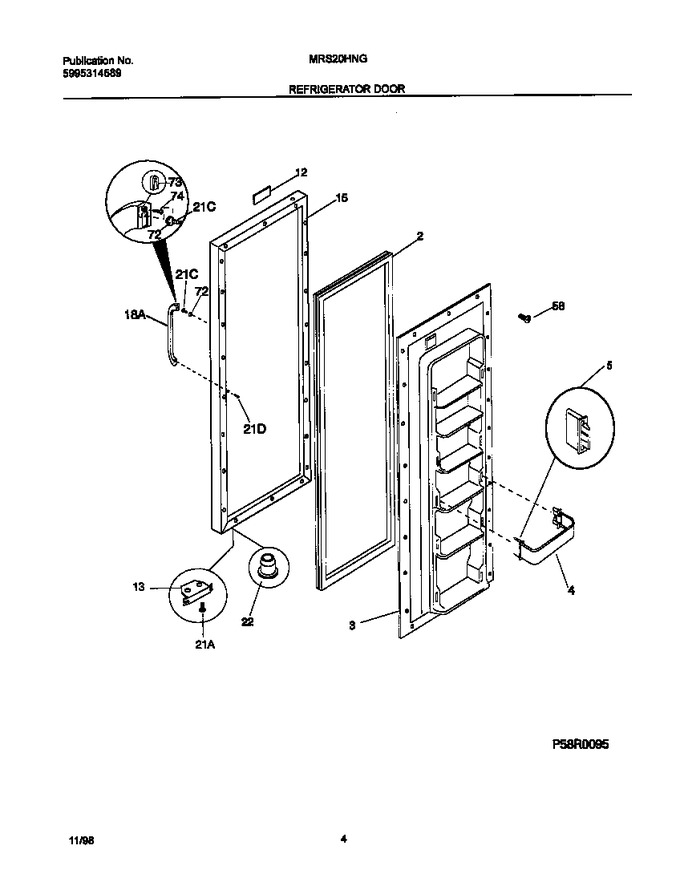

02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734312 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 218884201 | Panel-inner Door,refr |
|
- | |||||
| 4 | 218807001 | Rack-door,refr |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 12 | 218428204 | Frame-nameplate, White |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303917866 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 18 | 218717401 | Handle-door, White, W/block & Screw |
|
- | |||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X .5 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 215659600 | Screw-handle Mtg,hex Head, 10-32 X 1/2 |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 58 | 218781101 | Screw, Pan Head, 8-18 X 5/8 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd ,10-16 X 1/2 ,spec/hi-lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *27361 | 218180212 | Label-nameplate |
|
- | |||||
| *27362 | 5315340712 | Tape,adhesive ,12`` Long ,foam ,double-faced |
|
- | |||||
| *27363 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
