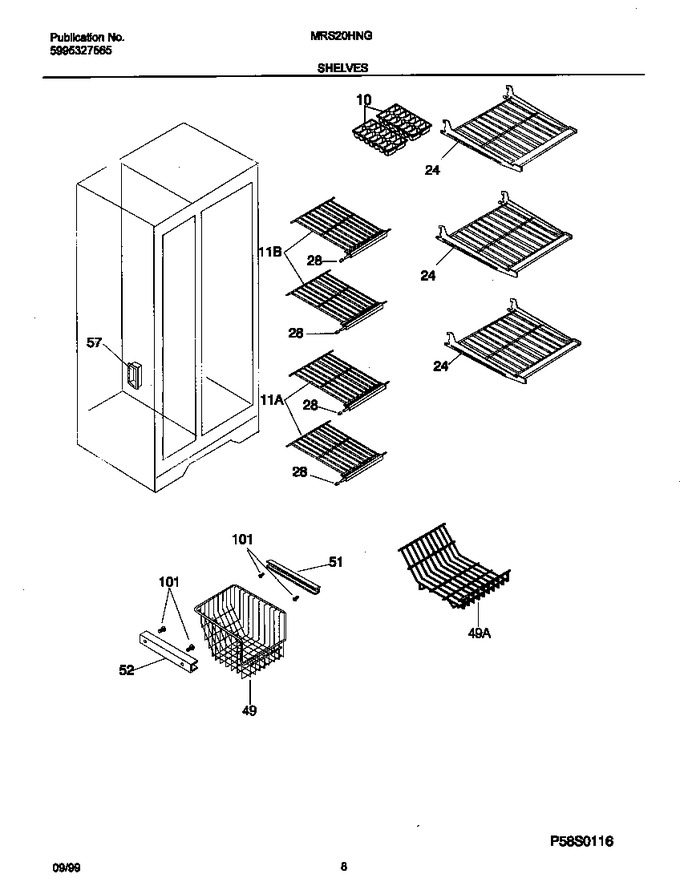

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5304405990 | Shelf-freezer,fixed Wire |
|
- | |||||
| 11 | 5304405989 | Shelf-freezer |
|
- | |||||
| 24 | 5303291258 | Shelf-cantilever, Refr |
|
- | |||||
| 28 | 08013638 | End Cap-shelf, Protector, Lower Fzr Shelf |
|
- | |||||
| 49 | 5303304810 | Trivet |
|
- | |||||
| 49 | 5303288957 | Basket-sliding |
|
- | |||||
| 51 | 5303288960 | Hanger-basket, Rh |
|
$ 70.77 | |||||
| 52 | 215162501 | Hanger-basket, Lh, With Spring |
|
$ 96.08 | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 101 | 5304455650 | Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger (Replaces: 215005000) |
|
$ 14.18 | |||||
| *23137 | 215328300 | Clip-shelf |
|
$ 14.02 |
