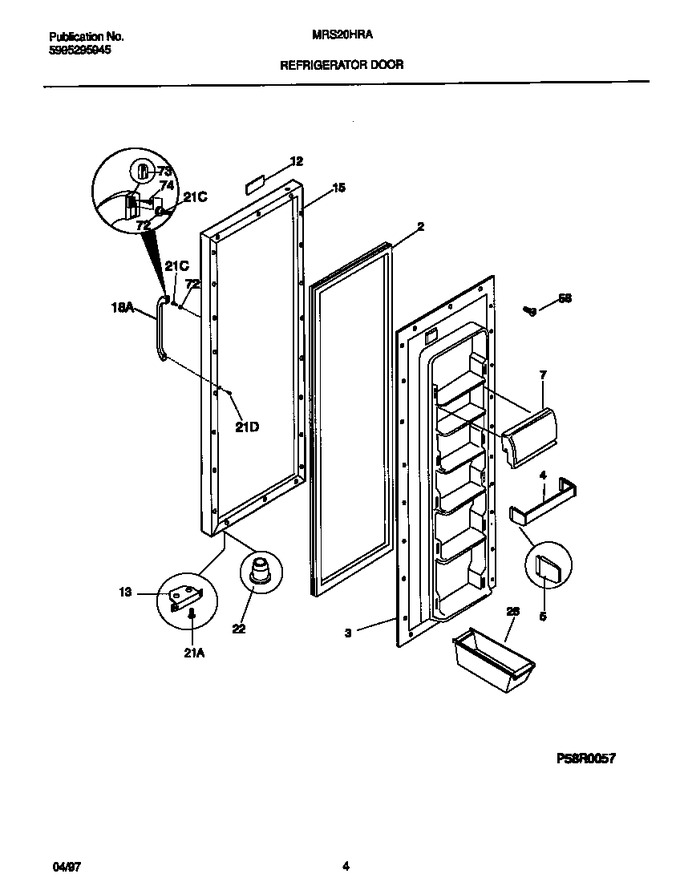

03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734302 | Gasket-refr Door, Almond, Magnetic |
|
- | |||||
| 3 | 5303288953 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215472100 | Rack-door, W/end Caps, (5) |
|
$ 128.36 | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 5303296797 | Door-dairy |
|
- | |||||
| 12 | 5315340712 | Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust |
|
- | |||||
| 12 | 218428205 | Frame-nameplate, Almond |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303917867 | Panel-refr Door, Almond, W/foam Insulatn |
|
- | |||||
| 18 | 218717402 | Handle-door, Almond, W/block & Screw |
|
- | |||||
| 21 | 215659600 | Screw-handle Mtg,hex Head, 10-32 X 1/2 |
|
- | |||||
| 21 | 218252201 | Screw, No. 8 Truss Head, 10-32ca X .5 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4, Bumper M |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 3204522 | Container-egg Optional Accessory |
|
$ 98.33 | |||||
| 58 | 218749600 | Screw, 10 Pan Head, 8-18 X 0.500 |
|
$ 5.15 | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *98761 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
