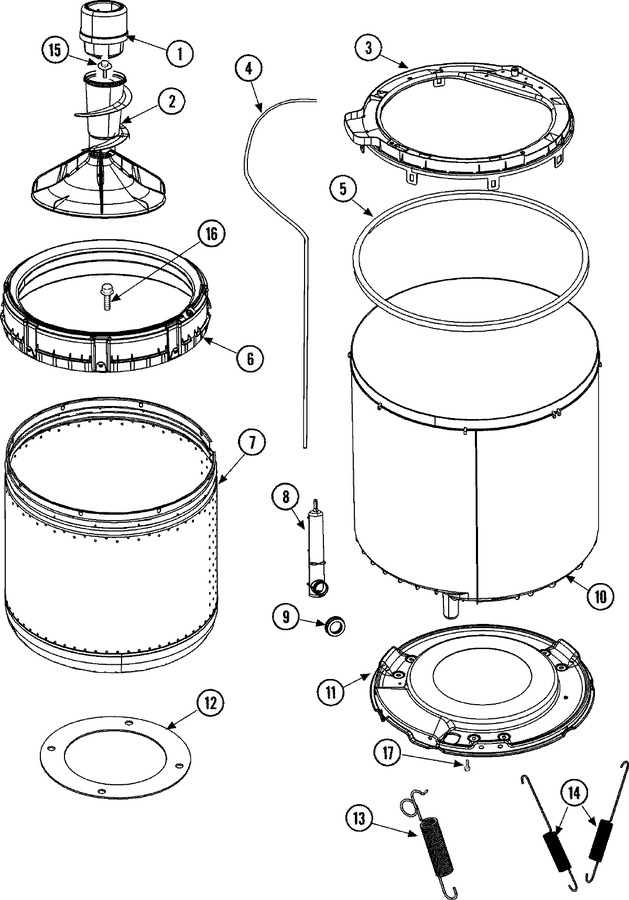

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27001097		Dispenser, Fabric (gray)	12	Appelez-nous	-
2	WP22004042		Agitator/auger Assy (as Pk)   (Replaces: 22004042)	12			$ 277.06
3	27001195		Cover, Outer Tub W Gasket	12	Appelez-nous	-
4	27001194		Tubing, Pvc 26``	12	Appelez-nous	-
5	27001130		Seal, Tub Cover	12			$ 32.30
6	27001052		Balance Ring	12	Appelez-nous	-
7	Y2201200		Tub, Ss Inner W/o L/f Holes -s	12	Appelez-nous	-
8	COMM PART		Assembly, Pressure Bulb   (Replaces: 40008501)	12	Appelez-nous	-
9	29175		Grommet   (Replaces: 40037801)	12			$ 8.56
10	40111001P		Tub, Plastic Outer	12			$ 58.50
11	27001067		Bottom, Outer Tub	12	Appelez-nous	-
11	35369		Screw,5/16-18 X .50   (Replaces: 40128701)	14		Immediately	$ 6.95
11	40001102		Bottom, Outer Tub	14	Appelez-nous	-
11	40015401		Seal-head	14			$ 31.23
12	27001222		Gasket, Foam	12			$ 32.31
13	27001025		Spring, Counterweight	12	Appelez-nous	-
14	Y37001124		Spring, Tall Tub	12			$ 5.54
15	WPW10309247		Screw, Agitator Retention   (Replaces: 25-8004)	12			$ 32.57
16	WPW10116787		Screw (w/loctite)   (Replaces: Y2201470)	12			$ 19.26
17	40064301		Screw, 1/4-15x3/4 Hex	12	Appelez-nous	-
