New Model Search:

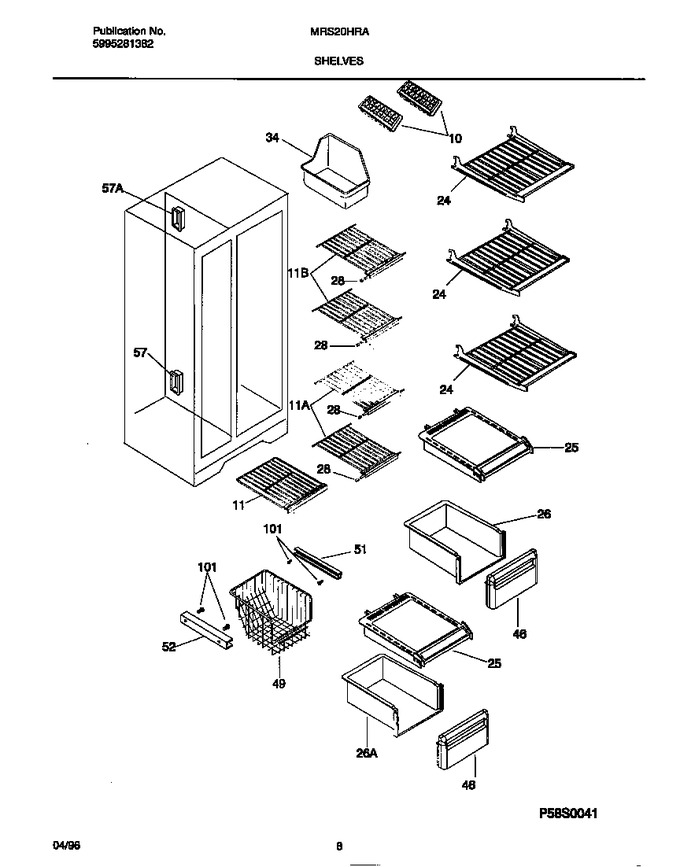

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303288962 | Shelf-freezer, Fixed Wire |
|
- | |||||
| 11 | 5303288963 | Shelf-freezer, Fixed Wire |
|
- | |||||
| 11 | 218298005 | Shelf, Freezer, Sliding, Wire |
|
$ 137.83 | |||||
| 24 | 5303291258 | Shelf-cantilever, Refr |
|
- | |||||
| 25 | 218147601 | Cover-storage Pan |
|
- | |||||
| 26 | 5303288971 | Pan-storage, Upper |
|
$ 171.91 | |||||
| 26 | 5303288968 | Pan-storage, Lower |
|
$ 204.84 | |||||
| 28 | 08013638 | End Cap-shelf, Protector |
|
- | |||||
| 34 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 46 | 5303294248 | Front-storage Pan |
|
- | |||||
| 49 | 5303288957 | Basket-sliding |
|
- | |||||
| 51 | 5303288960 | Hanger-basket, Rh |
|
$ 70.77 | |||||
| 52 | 215162501 | Hanger-basket, Lh, With Spring |
|
$ 96.08 | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 57 | 5303289064 | Ferrule-air |
|
- | |||||
| 101 | 5304455650 | Screw, Hex Washer Head, 8-18ab X 3/4, Gusset/hanger (Replaces: 215005000) |
|
$ 14.18 | |||||
| *55648 | 215339900 | Clip, Cantilevr Shlf |
|
$ 5.83 |
