SELECT A DIAGRAM

01 - Control Panel & Door


02 - Pump & Motor


03 - Rail & Rack Assembly (mdl/lwr)


04 - Rail & Rack Assembly (upr)


05 - Supplemental Information


06 - Tub


07 - Water Distribution Assembly


08 - Wiring Information

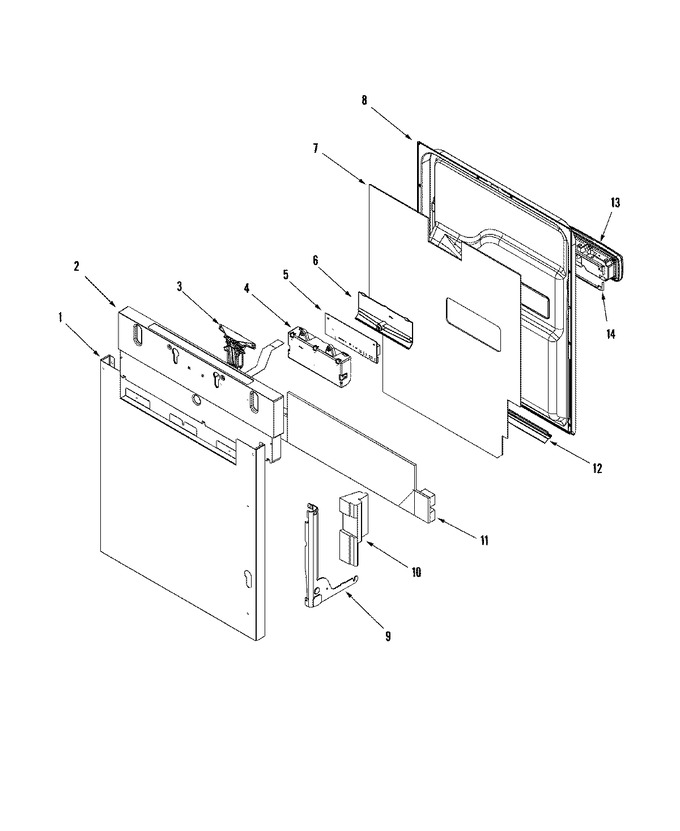

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002934		Damper (6``x 18``)	10	Appelez-nous	-
1	99003094		Support, Inner Door (blk)	10	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99003096		Fastener, Panel	10			$ 19.08
3	WPW10275768		Latch Assembly   (Replaces: 99002580)	10		Immediately	$ 79.15
3	99002751		Switch, Door	10			$ 23.02
4	99002576		Housing, Board (base)	10			$ 25.18
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
5	99003158		Board, Control	10	Appelez-nous	-
6	99002575		Housing, Board (top)	10			$ 20.11
6	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
7	99003044		Insulation, Door	10			$ 26.70
8	Y912620		Screw	10			$ 5.48
8	99003140		Door, Inner (w/damper)	10	Appelez-nous	-
9	99002929		Bracket, Hinge (lt)	10	Appelez-nous	-
9	99001075		Screw	10			$ 5.81
9	99003049		Wrap, Foam	10			$ 18.96
9	WPW10118637		Bracket, Hinge (rt)   (Replaces: 99002930)	10			$ 233.73
10	99003046		Block, Foam (lt)	10	Appelez-nous	-
10	99003047		Block, Foam (rt)	10	Appelez-nous	-
11	99003048		Barrier, Foam	10	Appelez-nous	-
12	99003045		Seal, Door (btm)	10			$ 38.59
13	99003059		Rinse Aid/detergent Dispenser	10	Appelez-nous	-
13	99002270		Seal, Base	10			$ 59.76
13	99003060		Knob, Rinse Aid (w/o-ring)	10			$ 19.99
14	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
14	99002465		Bracket, Dispenser	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
