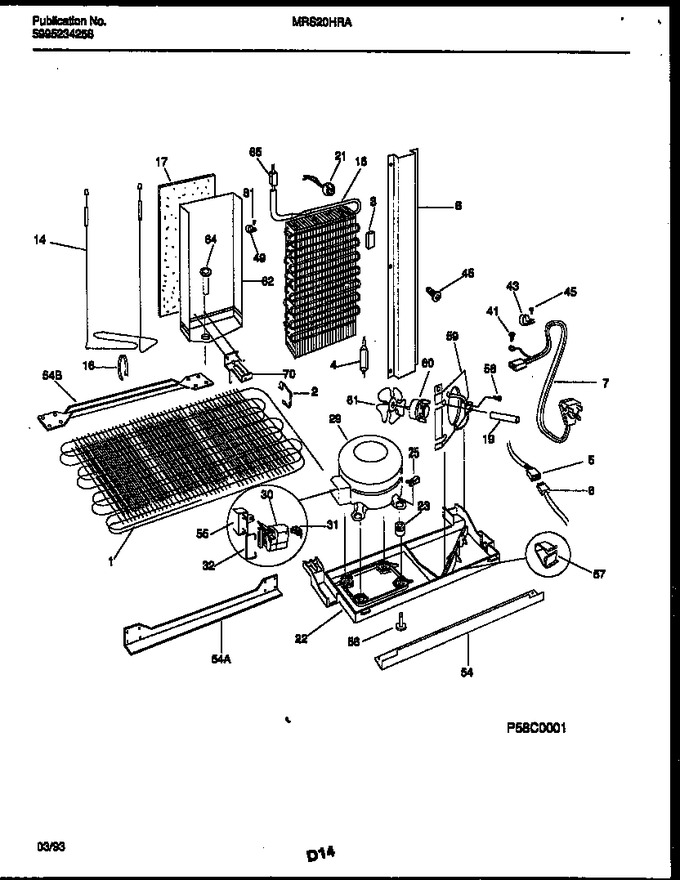

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 54 | 3051070 | Screw, Spcl Hx Wshr Hd, 10-32 X 1/2 (non-illustrated) |
|
- | |||||
| 54 | 5303289311 | Rail-compr Support |
|
- | |||||
| 54 | 5303289292 | Rail-cabinet Base, Front |
|
- | |||||
| 54 | 5303289027 | Rail-cabinet Base,rear |
|
- | |||||
| 55 | 5303289028 | Capacitor-run |
|
- | |||||
| 56 | 215014100 | Pin-compressor Mtg,(4) |
|
- | |||||
| 57 | 215073800 | Clip-wiring Harness |
|
- | |||||
| 58 | 215004600 | Screw-cond Fan Mtr, Hx Serr Wshr Hd, 6-32 X 7/16, (2) |
|
- | |||||
| 59 | 5303289031 | Shroud-cond Fan Mtr |
|
- | |||||
| 60 | 215501800 | Motor-condenser Fan |
|
- | |||||
| 61 | 5303289032 | Blade-cond Fan |
|
- | |||||
| 61 | 215004700 | Nut, Speed (non-illustrated) |
|
$ 3.78 | |||||
| 61 | 215223700 | Grommet-silencer (non-illustrated) |
|
- | |||||
| 62 | 215048200 | Trough-drain, And Shield Assy |
|
- | |||||
| 64 | 5303289063 | Tube-drain |
|
- | |||||
| 65 | 5303289301 | Spacer-tube |
|
$ 35.39 | |||||
| 70 | 5303289041 | Bracket-evap/cvr Mtg |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *67303 | 5303917166 | Hot Tube Repair Kit, Service |
|
- |
