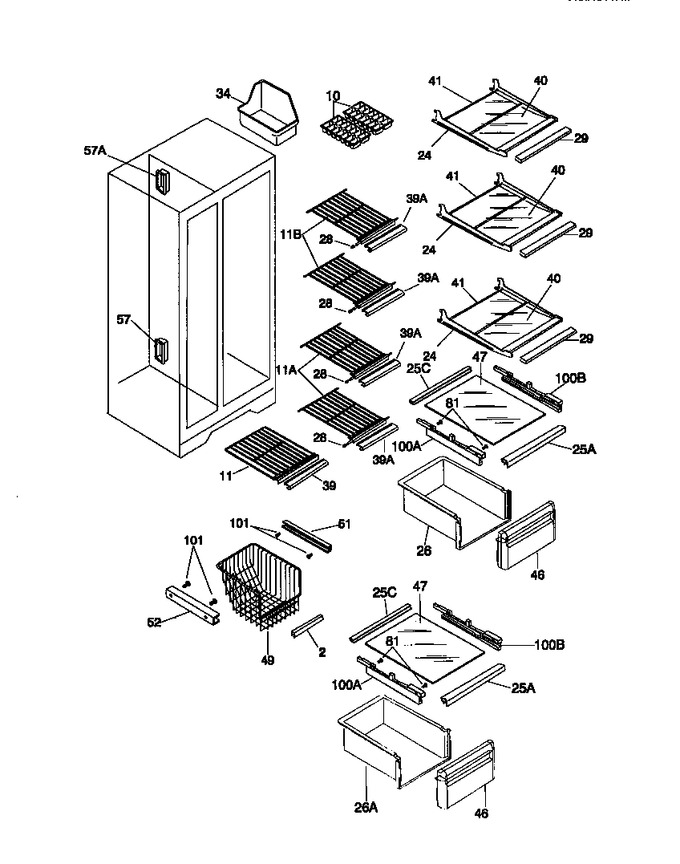

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303300707		Trim-basket		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303288962		Shelf-freezer, Fixed Wire		Appelez-nous	-
11	5303288963		Shelf-freezer, Fixed Wire		Appelez-nous	-
11	218298005		Shelf, Freezer, Sliding, Wire				$ 137.83
24	215919135		Frame, Refr Shelf, Cantilever		Appelez-nous	-
25	218015301		Trim-storage Pan Cvr, Snap-on, Front				$ 48.25
25	218015401		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303288971		Pan-storage, Upper				$ 171.91
26	5303288968		Pan-storage, Lower				$ 204.84
28	08013638		Cap-protector		Appelez-nous	-
29	215919413		Trim, Refr Shelf, Front, (3)				$ 51.66
34	5303212918		Container-ice				$ 104.66
39	215217562		Trim, Frzr Shelf				$ 9.60
39	215217563		Trim, Frzr Shelf, (4)		Appelez-nous	-
40	5303304838		Glass-refr Shelf, Clear		Appelez-nous	-
41	215919813		Trim-refr Shelf, Rear (3)				$ 36.44
46	5303304811		Front-crisper Pan, (2)		Appelez-nous	-
47	215723598		Insert-pan Cover, Glass, Clear		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303289064		Ferrule-air		Appelez-nous	-
57	5303271653		Ferrule-inner				$ 20.27
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
100	218015501		Support-pan Cover, Lh				$ 37.26
100	218015601		Support-pan Cover, Rh				$ 55.18
101	5304455650		Screw-basket Hanger, Hex Washer Head, 8-18ab X 3/4   (Replaces: 215005000)				$ 14.18
*29928	215339900		Clip, Cantilevr Shlf				$ 5.83

    View Diagram in Separate Window       Print Part List
