SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls

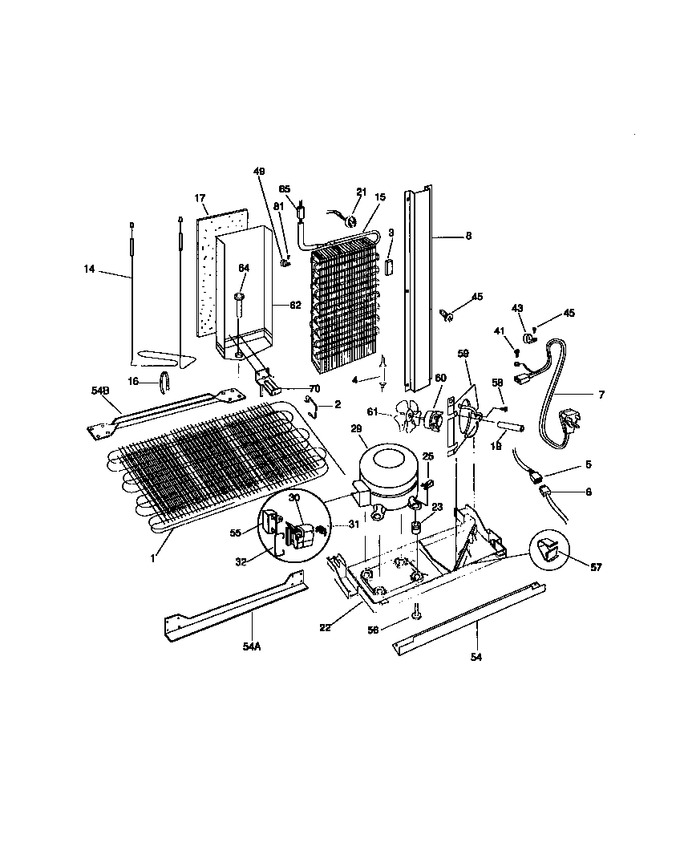

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303289029		Clip-cond Mtg. (4)		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
5	215616900		Harness-wiring, Main		Appelez-nous	-
7	215459201		Cord-electric Power				$ 66.47
8	5303289033		Cover-wiring		Appelez-nous	-
14	218657301		Heater-defrost   (Replaces: 215751900)			Immediately	$ 109.15
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5303289042		Insulator-evap		Appelez-nous	-
19	5303001198		Tube-rubber		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	5303289030		Base-compressor Mtg,(drain Pan)				$ 213.57
23	218513300		Grommet-compr Mtg				$ 42.53
25	215014200		Clip-compressor Mtg		Appelez-nous	-
29	5303917328		Compressor Only, W/o Electricals		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303274700		Overload		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
41	5308000039		Screw		Appelez-nous	-
49	215506900		Bracket-evap Mtg		Appelez-nous	-
54	5303289311		Rail-compr Support		Appelez-nous	-
54	5303289292		Rail-cabinet Base, Front		Appelez-nous	-
54	5303289027		Rail-cabinet Base,rear		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
56	215014100		Pin-compressor Mtg,(4)		Appelez-nous	-
57	218247300		Clip-wiring Harness		Appelez-nous	-
58	215004600		Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2)		Appelez-nous	-
59	5303289031		Shroud-cond Fan Mtr		Appelez-nous	-
60	215501800		Motor-condenser Fan		Appelez-nous	-
62	215048200		Trough-drain, And Shield Assy		Appelez-nous	-
64	5303289063		Tube-drain		Appelez-nous	-
65	5303289301		Spacer-tube				$ 35.39
70	5303289041		Bracket-evap/cvr Mtg		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*29930	5303917166		Hot Tube Repair Kit, Service		Appelez-nous	-
15A	215289603		Evaporator, W/heat Exchangr				$ 423.56
15B	3206414		Tube-inlet (not Illustrated)				$ 31.61
1A	5303289025		Condenser		Appelez-nous	-
1B	5303208866		Spacer-tube (not Illustrated)				$ 1.94
1C	5303289026		Spacer, Tube (not Illustrated)		Appelez-nous	-
3A	215226501		Block-evap Coil,styrofoam Insul,rh		Appelez-nous	-
3B	215305900		Block-evap Coil, Styrofoam Insul, Lh (not Illustrated)		Appelez-nous	-
43A	215174700		Clamp, Service Cord, Strain Relief		Appelez-nous	-
43B	5303001199		Clamp				$ 65.92
43C	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
45B	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
45C	5300141713		Screw-clamp Mtg, Hex Washer Head, 8-32 X 5/8, Special (n		Appelez-nous	-
61A	5303289032		Blade-cond Fan		Appelez-nous	-
61B	215004700		Nut, Speed (not Illustrated)				$ 3.78
61C	215223700		Grommet, Silencer (not Illustrated)		Appelez-nous	-
6A	215013800		Harness-wiring, Refr Controls		Appelez-nous	-
6B	215226000		Harness-wiring, Frzr Controls (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
