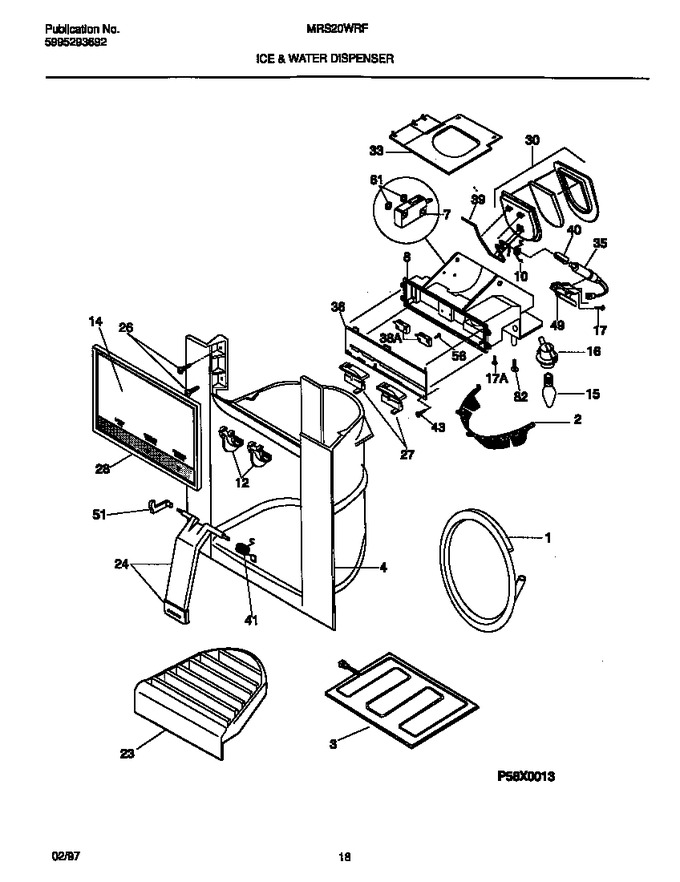

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	218505302		Deflector-ice Disp, Almond		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	215922302		Housing-dispenser, Almond		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	218505201		Module-dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	215627211		Knob-selector, Almond		Appelez-nous	-
14	218416119		Label-module Cover, Almond		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	215447011		Drip Tray, Almond				$ 22.45
24	5303319470		Actuator, Almond, 1-pc (w/pad)		Appelez-nous	-
26	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
27	218432600		Cam-slide				$ 53.97
28	215447111		Cover-module, Almond		Appelez-nous	-
30	215753600		Door Assy-ice Chute, W/gasket, Insul		Appelez-nous	-
33	218510201		Heater-disp Throat		Appelez-nous	-
35	218740002		Heat Motor, 115v				$ 234.65
36	218432400		Cover-selector Sw		Appelez-nous	-
38	218479900		Switch-micro				$ 57.65
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215917800		Spring-actuator				$ 10.03
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
51	215922200		Cam-switch				$ 13.28
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*44810	215781700		Clip-tube		Appelez-nous	-
*44811	218432510		Harness-wiring, Disp		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat (not Illustrated)		Appelez-nous	-
1A	5308010366		Tube-water Inlet, 93``, Plastic, Cut-to-size				$ 17.44
1B	215294101		Tube-water Inlet, Formed, Plastic, Dispenser (not Illustrated)				$ 91.25
