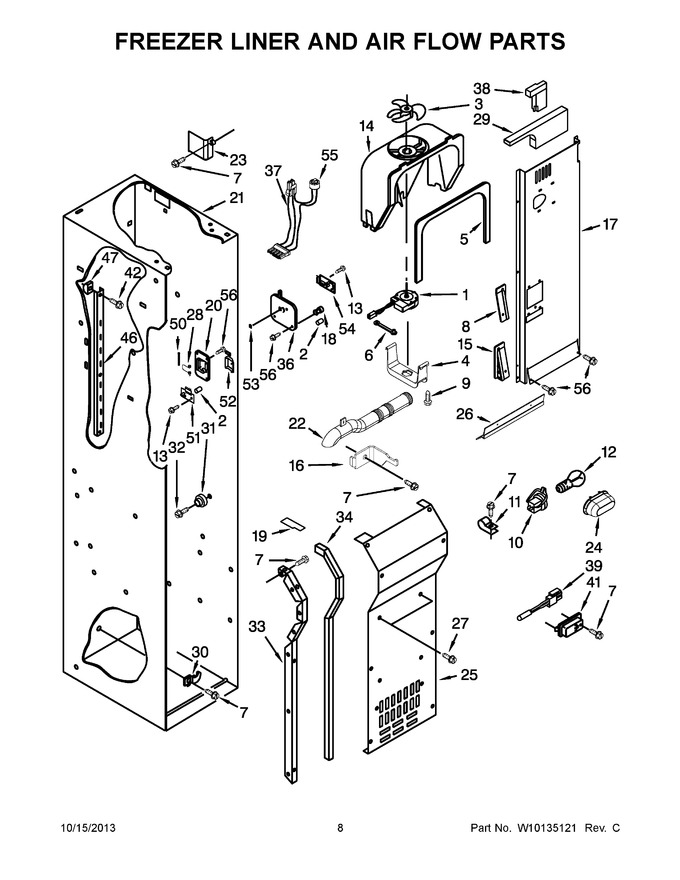

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
2259385 |
|
Motor, Evaporator |
|
|
|
$ 84.74 |
|
|
| 2 |
2198665 |
 |
Tube, Circuit Board |
|
|
|
$ 21.52 |
|
|
| 3 |
WP2169142 |
 |
Blade, Fan (Replaces: 2169142) |
|
|
Immediately |
$ 41.01 |
|
|
| 4 |
8201663 |
 |
Retainer, Fan Motor (Replaces: 2223733) |
|
|
|
$ 143.34 |
|
|
| 5 |
WP2302817 |
|
Gasket, Scroll Assembly (Replaces: 2302816) |
|
|
|
$ 90.94 |
|
|
| 6 |
W11669856 |
|
Grommet (Replaces: 2223986) |
|
|
Immediately |
$ 14.34 |
|
|
| 7 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 13.25 |
|
|
| 8 |
2259464 |
|
Wedge, Right Air Duct |
|
|
|
$ 85.84 |
|
|
| 9 |
WP489128 |
 |
Screw (Replaces: 488500) |
|
|
|
$ 10.26 |
|
|
| 10 |
WPW10191429 |
 |
Socket, Light (Replaces: 2223857) |
|
|
|
$ 7.92 |
|
|
| 11 |
488937 |
|
Clamp, Tube |
|
Appelez-nous
|
- |
|
|
|
| 12 |
WPA3073101 |
 |
Bulb, Light (Replaces: 2326255) |
|
|
Immediately |
$ 11.45 |
|
|
| 13 |
2006254 |
|
Screw (Replaces: 489214) |
|
|
|
$ 12.41 |
|
|
| 14 |
W11254898 |
 |
Scroll, Fan (Replaces: 2182119) |
|
|
Immediately |
$ 305.49 |
|
|
| 15 |
2259465 |
|
Wedge, Left Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 16 |
2302925 |
|
Bracket, Vent Tube |
|
Appelez-nous
|
- |
|
|
|
| 17 |
2307773 |
|
Duct, Air |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP2198643 |
 |
Lens, Receiver (Replaces: 2198643) |
|
|
|
$ 7.73 |
|
|
| 19 |
2209066 |
|
Block, Fan Scroll (left Hand) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
2209481 |
|
Block, Fan Scroll (right Hand) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
WP2215650 |
|
Cover, Emitter (Replaces: 2215650) |
|
|
|
$ 191.68 |
|
|
| 21 |
N/P |
|
Liner (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
2302933 |
|
Tube, Vent |
|
Appelez-nous
|
- |
|
|
|
| 23 |
2259025 |
|
Cover, Air Outlet |
|
|
|
$ 83.12 |
|
|
| 24 |
2307751 |
|
Shield, Light |
|
|
|
$ 17.27 |
|
|
| 25 |
2314042 |
|
Cover, Evaporator |
|
Appelez-nous
|
- |
|
|
|
| 26 |
2302849 |
|
Support, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 27 |
WP488729 |
 |
Screw (stainless) (Replaces: 487539) |
|
|
Immediately |
$ 7.45 |
|
|
| 28 |
WP2198635 |
 |
Spring, Door (Replaces: 2198635) |
|
|
|
$ 82.29 |
|
|
| 29 |
2309282 |
|
Deflector, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 30 |
1112260 |
|
Support, Evaporator |
|
Appelez-nous
|
- |
|
|
|
| 31 |
WP2196483 |
 |
Assembly, Shelf Stud (Replaces: 2196483) |
|
|
|
$ 9.78 |
|
|
| 32 |
WP3400806 |
 |
Screw (Replaces: 8281158) |
|
|
|
$ 7.29 |
|
|
| 33 |
2259355 |
|
Rail, Evaporator Cover (right Hand) |
|
|
|
$ 113.89 |
|
|
| 33 |
2221107 |
|
Rail, Evaporator Cover (left Hand) |
|
Appelez-nous
|
- |
|
|
|
| 34 |
2220904 |
|
Gasket, Evaporator Cover |
|
|
|
$ 21.20 |
|
|
| 36 |
2259493 |
|
Cover, Receiver |
|
|
|
$ 85.17 |
|
|
| 37 |
2310310 |
|
Assembly, Bi-metal Wire |
|
|
|
$ 54.13 |
|
|
| 38 |
2317826 |
|
Block, Return Air |
|
Appelez-nous
|
- |
|
|
|
| 39 |
WP2306010 |
 |
Thermistor (Replaces: 2306010) |
|
|
Immediately |
$ 93.22 |
|
|
| 41 |
WP2317844 |
|
Cover, Thermistor (Replaces: 2317105) |
|
|
|
$ 10.24 |
|
|
| 42 |
2006475 |
|
Screw (white) |
|
Appelez-nous
|
- |
|
|
|
| 46 |
WP2259032 |
|
Ladder, Shelf (Replaces: 2259032) |
|
|
|
$ 72.92 |
|
|
| 47 |
2259397 |
|
Support, Ladder Screw |
|
Appelez-nous
|
- |
|
|
|
| 50 |
WP2198634 |
 |
Pin, Door (Replaces: 2198634) |
|
|
|
$ 16.79 |
|
|
| 51 |
W11629974 |
 |
Circuit Board, Emitter (Replaces: 2220398) |
|
|
Immediately |
$ 379.01 |
|
|
| 52 |
WP2198633 |
 |
Flipper, Shut Off (Replaces: 2198633) |
|
|
Immediately |
$ 45.61 |
|
|
| 53 |
2255563 |
|
Slide, Icemaker Shut Off |
|
|
|
$ 75.36 |
|
|
| 54 |
W11629974 |
|
Circuit Board, Receiver (Replaces: 2255114) |
|
|
Immediately |
$ 379.01 |
|
|
| 55 |
WPW10225581 |
 |
Bi-metal, Defrost (Replaces: 2317087) |
|
|
Immediately |
$ 45.92 |
|
|
| 56 |
WPW10142283 |
|
Screw (white) (Replaces: 8281185) |
|
|
|
$ 9.30 |
|
|
