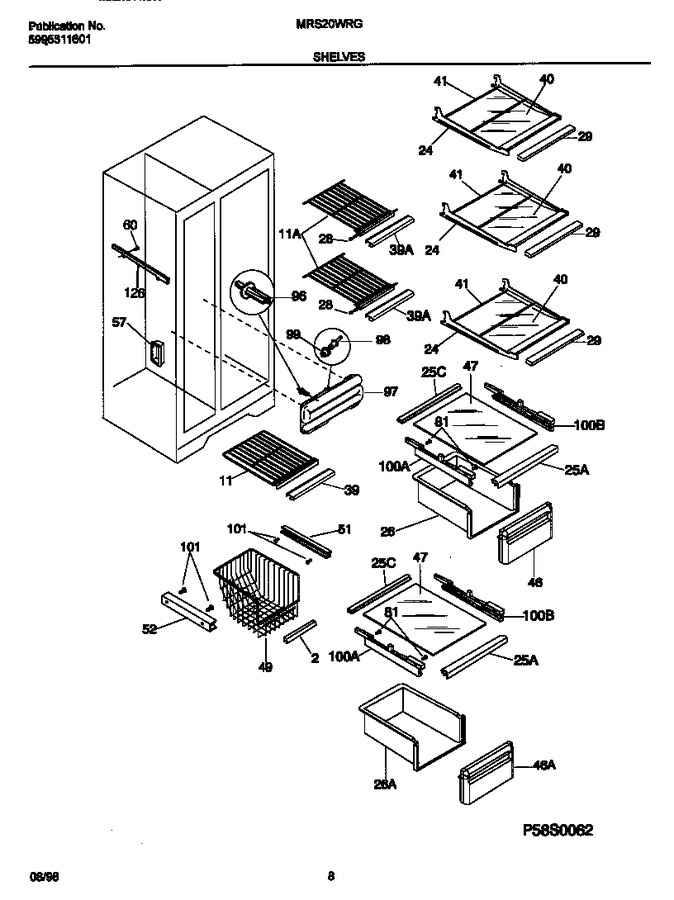

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303300707		Trim-basket		Appelez-nous	-
11	218298005		Shelf, Freezer, Sliding, Wire				$ 137.83
11	5304405989		Shelf-freezer		Appelez-nous	-
24	215919136		Frame, Refr Shelf, Cantilever, (3)		Appelez-nous	-
25	218015301		Trim-storage Pan Cvr, Snap-on, Front				$ 48.25
25	218015401		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303288971		Pan-storage, Upper				$ 171.91
26	5303288968		Pan-storage, Lower				$ 204.84
28	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
29	215919468		Trim-refr Shelf, Front, (3)		Appelez-nous	-
39	215217596		Trim-frzr Shelf		Appelez-nous	-
39	215217597		Trim-frzr Shelf		Appelez-nous	-
40	218498153		Glass-refr Shelf		Appelez-nous	-
41	215919813		Trim-refr Shelf, Rear (3)				$ 36.44
46	5303323272		Front-storage Pan, Lower		Appelez-nous	-
46	5303323271		Front-storage Pan, Upper		Appelez-nous	-
49	5303288957		Basket-sliding		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
60	5304455852		Screw,hex Wshr Hd,8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 218871301)				$ 121.63
98	5308015614		Connector - Tube				$ 34.57
99	5300186057		Grommet-tank				$ 28.98
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
*12497	218159700		Spacer-shelf		Appelez-nous	-
*12498	215328300		Clip-shelf				$ 14.02
100A	218015501		Support-pan Cover, Lh				$ 37.26
100B	218015601		Support-pan Cover, Rh				$ 55.18
126A	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126B	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
47A	215723551		Insert-pan Cover,glass ,clear ,lower				$ 75.72
47B	218390555		Insert-pan Cover, Glass, Clear, White Graphics		Appelez-nous	-
