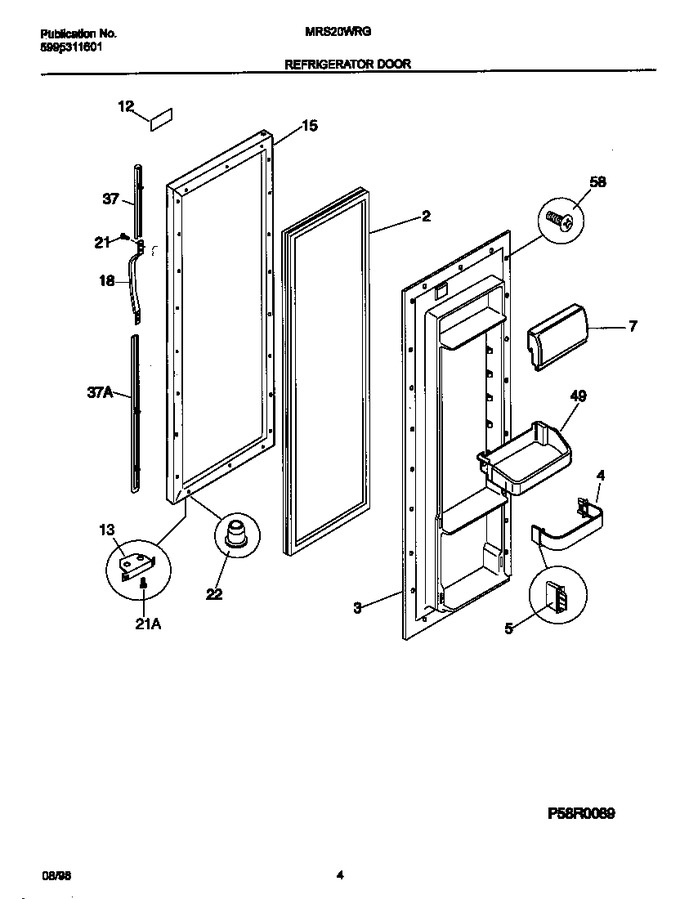

03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Ice Dispenser
09 - Ice Container
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734312 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 218749301 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215472100 | Rack-door,w/end Caps |
|
$ 128.36 | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 215058111 | Door-dairy |
|
- | |||||
| 12 | 218428204 | Frame-nameplate, White |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 5303917881 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 18 | 218668401 | Handle-door, White |
|
$ 74.97 | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215867082 | Trim-handle, White, Lower, With Snap Locks |
|
$ 78.21 | |||||
| 37 | 215867083 | Trim-handle, White, Upper, With Snap Lock |
|
$ 73.07 | |||||
| 49 | 5303319068 | Bin-door, Gallon |
|
- | |||||
| 58 | 218749600 | Screw,10 Pan Hd ,8-18 X .5 |
|
$ 5.15 | |||||
| *12482 | 5315340712 | Tape,adhesive ,12`` Long ,foam ,double-faced |
|
- | |||||
| *12483 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *12484 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 37A | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| 37B | 215940700 | Lock-handle Trim, Stick-on |
|
- |
