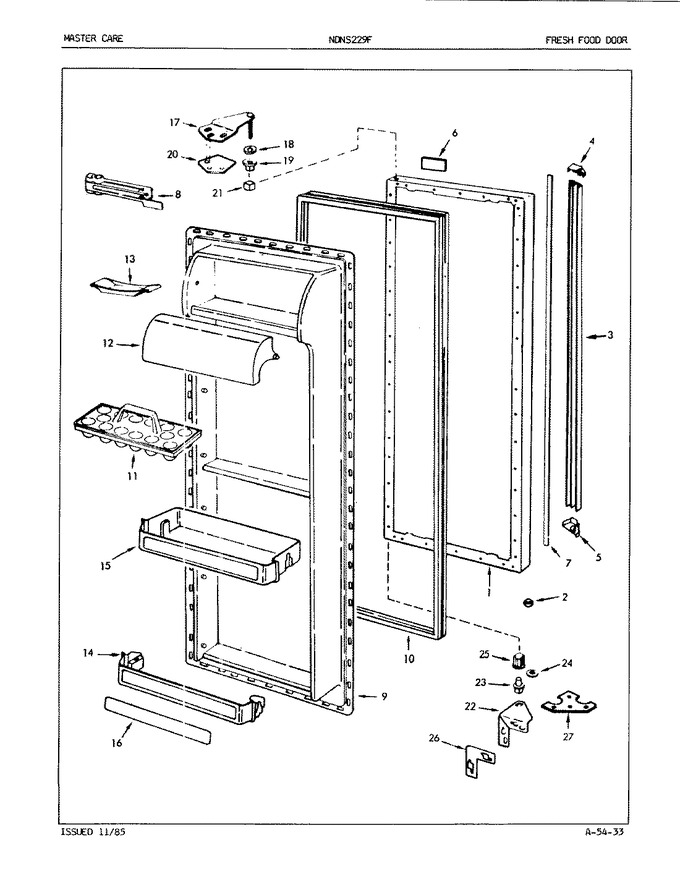

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55587-48-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	56835-36		Handle		Appelez-nous	-
3	402100-1		Screw		Appelez-nous	-
3	420063-1		Washer		Appelez-nous	-
4	57947-1		End Cap		Appelez-nous	-
5	57947-2		End Cap		Appelez-nous	-
5	402077-7		Screw		Appelez-nous	-
6	65791-2		Nameplate		Appelez-nous	-
7	65772-17		Trim		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
8	54485-1		Closer, Door		Appelez-nous	-
8	52614-1		Bracket, Closer		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
9	65641-4		Liner, Door		Appelez-nous	-
10	53712-2		Gasket		Appelez-nous	-
11	60066-2		Tray, Egg		Appelez-nous	-
12	65589-211		Door, Dairy		Appelez-nous	-
13	29936-2		Tray, Butter		Appelez-nous	-
14	65781-5		Shelf Front		Appelez-nous	-
15	65782-5		Shelf Front		Appelez-nous	-
16	65571-17		Insert		Appelez-nous	-
17	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
17	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
19	66036-2		Bushing, Upper Hinge		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	55990-1		Seal Sleeve		Appelez-nous	-
22	403062-5		Screw		Appelez-nous	-
22	60630-12		Hinge, Lower		Appelez-nous	-
23	53672-1		Pin, Lower Hinge		Appelez-nous	-
24	54233-1		Washer				$ 7.71
25	66034-1		Bushing, Lower Hinge				$ 19.76
26	62626-1		Spacer, Mtg Lower Hinge		Appelez-nous	-
27	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
