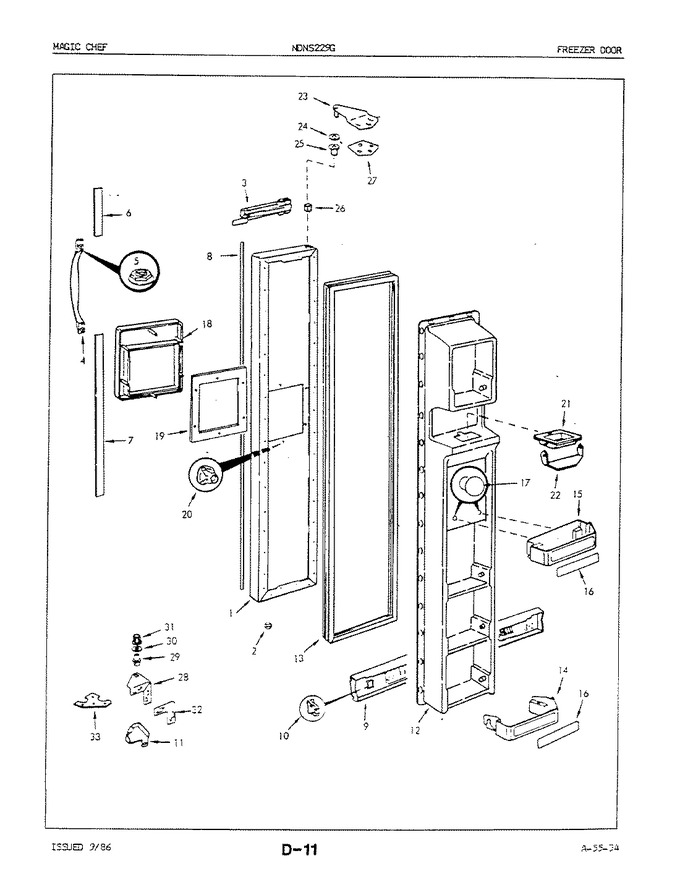

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63069-9-AM | Panel, Outer Door |
|
- | |||||
| 2 | 495034-900 | Plug Button, Door |
|
- | |||||
| 3 | 54485-1 | Closer, Door |
|
- | |||||
| 3 | 52613-1 | Insulation, Closer |
|
- | |||||
| 3 | 52614-1 | Bracket, Closer |
|
- | |||||
| 4 | 66453-2 | Handle Asm |
|
- | |||||
| 5 | 430088-506 | Nut |
|
- | |||||
| 6 | 65774-17 | Handle Ext |
|
- | |||||
| 7 | 65774-18 | Handle Ext |
|
- | |||||
| 8 | 65772-21 | Trim |
|
- | |||||
| 9 | 56478-26 | Kickplate |
|
- | |||||
| 10 | 52854-3 | Clip, Kickplate |
|
- | |||||
| 10 | WP489478 | Screw, Kickplate Mtg. (Replaces: 9986-101) |
|
$ 6.98 | |||||
| 11 | 65131-1 | Wire Cover |
|
- | |||||
| 12 | 9986-12 | Screw,door Liner |
|
- | |||||
| 12 | 65699-5 | Liner, Door |
|
- | |||||
| 13 | 53712-5 | Gasket |
|
- | |||||
| 14 | 65701-5 | Shelf Front |
|
- | |||||
| 15 | 65709-5 | Shelf, Frz. Door |
|
- | |||||
| 16 | 65571-27 | Insert |
|
- | |||||
| 17 | 420028-1 | Washer |
|
- | |||||
| 17 | WP90767 | Screw (Replaces: 400014-1) |
|
Immediately | $ 7.04 | ||||
| 17 | 65660-1 | Shelf Stud |
|
- | |||||
| 18 | 60482-34 | Escutcheon |
|
- | |||||
| 19 | 63057-1 | Seal, Escutcheon |
|
- | |||||
| 20 | 65211-2 | Retainer, Escutcheon |
|
- | |||||
| 21 | 63020-2 | Collar |
|
- | |||||
| 22 | 63075-1 | Door, Ice Chute |
|
- | |||||
| 23 | 53709-16 | Upper Hinge,(chrome) |
|
- | |||||
| 23 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 23 | 65003-3 | Cover, Upper Hinge (alm) |
|
- | |||||
| 24 | 52185-2 | Washer |
|
- | |||||
| 25 | 66036-2 | Bushing, Upper Hinge |
|
- | |||||
| 26 | 55990-1 | Seal Sleeve |
|
- | |||||
| 27 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 28 | 400062-1 | Screw |
|
- | |||||
| 28 | 60630-14 | Hinge |
|
- | |||||
| 28 | 403062-5 | Screw |
|
- | |||||
| 29 | 55479-1 | Pin |
|
- | |||||
| 30 | 54233-2 | Washer |
|
- | |||||
| 31 | 66035-1 | Bushing |
|
- | |||||
| 32 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 33 | 65964-1 | Tapping Plate, Lower Hinge |
|
- |
