SELECT A DIAGRAM

01 - Freezer Compartment

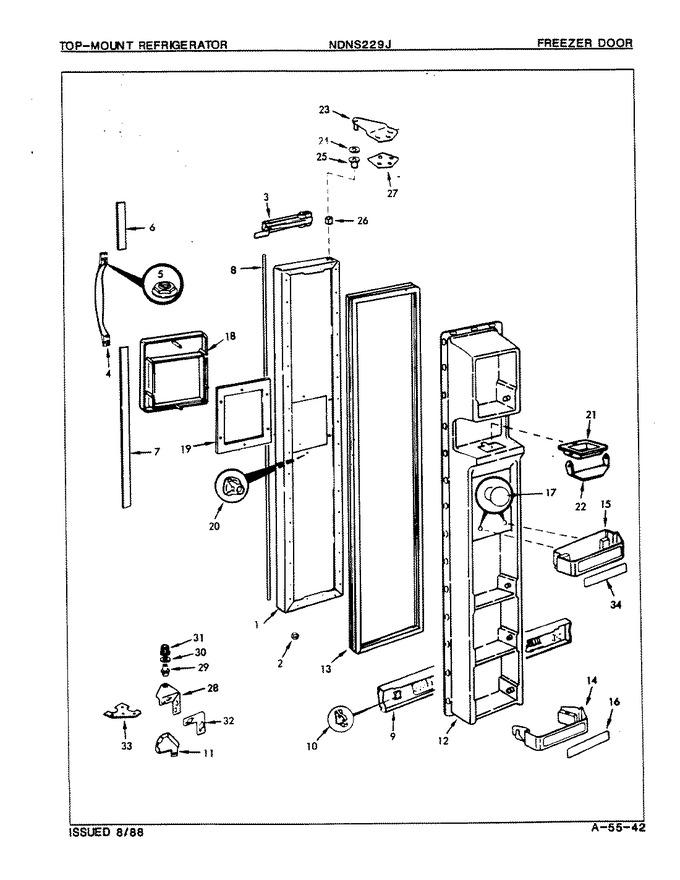

02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63069-19-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
4	63686-8		Handle		Appelez-nous	-
5	430088-506		Nut		Appelez-nous	-
6	65774-29		Handle Ext		Appelez-nous	-
7	65774-30		Handle Ext		Appelez-nous	-
8	65772-29		Trim		Appelez-nous	-
9	56478-26		Kickplate		Appelez-nous	-
10	52854-3		Clip, Kickplate		Appelez-nous	-
10	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
10	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
11	65131-1		Wire Cover		Appelez-nous	-
12	65275-5		Screw		Appelez-nous	-
12	65950-11		Liner, Door		Appelez-nous	-
13	53712-5		Gasket		Appelez-nous	-
14	65701-9		Shelf Front		Appelez-nous	-
15	65709-9		Shelf, Frz. Door		Appelez-nous	-
16	68121-35		Insert		Appelez-nous	-
17	420028-1		Washer		Appelez-nous	-
17	WP90767		Screw   (Replaces: 400014-1)			Immediately	$ 7.04
17	65660-2		Stud, Pick-off Shelf		Appelez-nous	-
18	60482-53		Escutcheon		Appelez-nous	-
19	63057-1		Seal, Escutcheon		Appelez-nous	-
20	65211-2		Retainer, Escutcheon		Appelez-nous	-
21	66775-6		Collar		Appelez-nous	-
22	63075-1		Door, Ice Chute		Appelez-nous	-
23	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
23	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
23	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
24	52185-2		Washer		Appelez-nous	-
25	66036-2		Bushing, Upper Hinge		Appelez-nous	-
26	55990-1		Seal Sleeve		Appelez-nous	-
27	65031-1		Shim, Upper Hinge		Appelez-nous	-
28	403062-5		Screw		Appelez-nous	-
28	400062-1		Screw		Appelez-nous	-
28	60630-4		Hinge		Appelez-nous	-
29	65418-1		Pin		Appelez-nous	-
30	54233-2		Washer		Appelez-nous	-
31	66037-1		Hinge Bushing		Appelez-nous	-
32	60626-1		Shim, Lower Hinge		Appelez-nous	-
33	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
34	68121-35		Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
