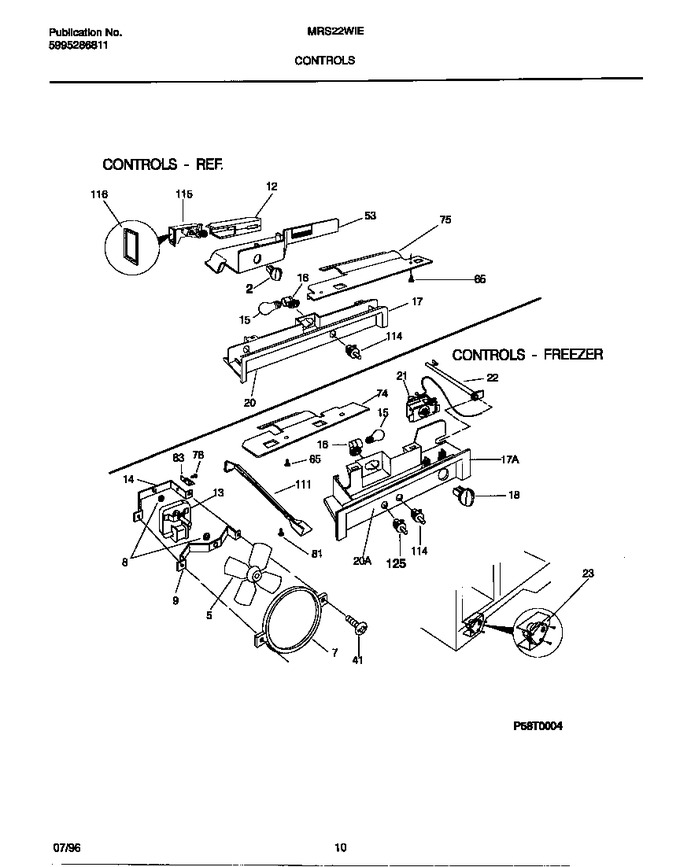

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215028605 | Knob-damper Control |
|
- | |||||
| 5 | 5308000010 | Fan Blade, Red |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 12 | 215809600 | Diffuser-air |
|
- | |||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 5303289050) |
|
$ 72.68 | |||||
| 17 | 5303296581 | Control Box, Frzr |
|
$ 64.25 | |||||
| 17 | 5303296805 | Control Box, Refr |
|
- | |||||
| 18 | 215051008 | Knob-temp Control |
|
- | |||||
| 20 | 5303310528 | Label-control Box, Refr |
|
- | |||||
| 20 | 5303310529 | Label-control Box, Frzr |
|
- | |||||
| 21 | 5303294323 | Control-temperature |
|
- | |||||
| 22 | 5303319683 | Housing-temp Sensor, Plastic |
|
$ 27.93 | |||||
| 53 | 215809505 | Box-damper Control |
|
- | |||||
| 65 | 5303001361 | Pin-mounting, Push-in, Plastic |
|
- | |||||
| 74 | 218465000 | Shield-light, Frzr |
|
- | |||||
| 75 | 218465100 | Shield-light, Refr |
|
$ 18.19 | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 111 | 5303289024 | Wireway, Frzr |
|
- | |||||
| 114 | 5303289051 | Switch-light/lamp,white |
|
$ 26.23 | |||||
| 115 | 215011503 | Damper Assy, W/seal |
|
$ 318.20 | |||||
| 116 | 215011400 | Seal-damper, Foam |
|
- | |||||
| 125 | 215334201 | Switch-auger Kill,white |
|
$ 31.87 | |||||
| *98166 | 215188300 | Screw-control Box Mtg, Hex Head, 8-15a X 1.000, Refr/frz |
|
- | |||||
| 13A | 218394100 | Motor-evap Fan |
|
- | |||||
| 13B | 215474201 | Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrated) |
|
Immediately | $ 18.43 | ||||
| 23A | 215846602 | Timer-defrost |
|
Immediately | $ 28.20 | ||||
| 23B | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23C | 215277000 | Cover, Defrost Timer, Top (not Illustrated) |
|
- | |||||
| 23D | 5303289058 | Shield, Defrost Timr, Btm (not Illustrated) |
|
- | |||||
| 41A | 5308000039 | Screw |
|
- | |||||
| 41B | 5303209814 | Nut, ``u`` Type, 8-15(a), Fan Motor Mount (not Illustrated |
|
- |
