SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


05 - Cabinet


06 - Shelves


07 - Controls


08 - System


09 - Ice & Water Dispenser


10 - Container


11 - Ice Maker

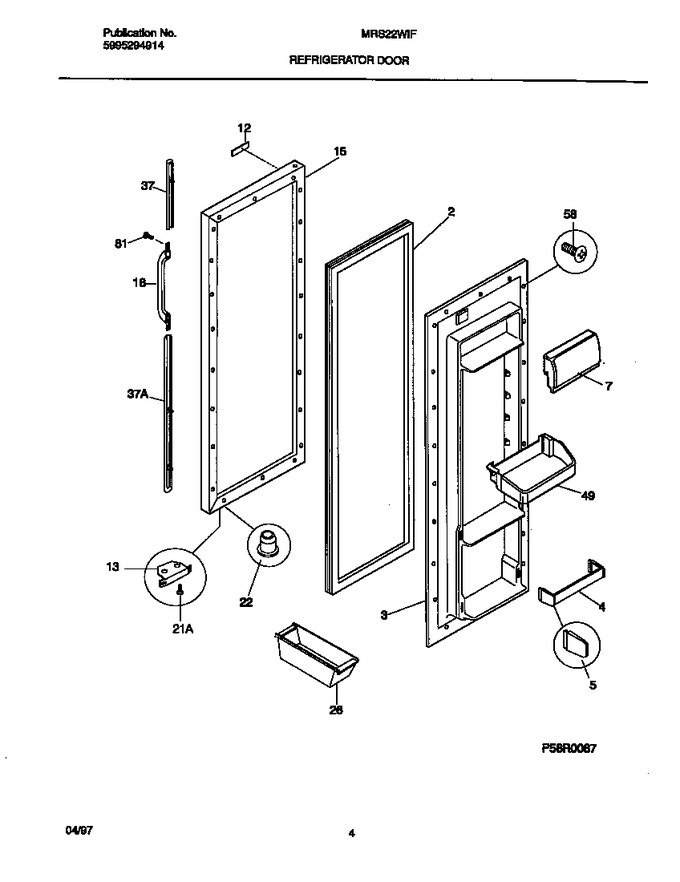

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734304		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215390401		Panel-inner Door,refr		Appelez-nous	-
4	218027074		Rack-door		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215029913		Door-dairy		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	218428205		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917872		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
18	218668402		Handle-door, Almond		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215867084		Trim-handle, Almond, Lower, With Snap Locks				$ 90.04
37	215867085		Trim-handle, Almond, Upper, With Snap Lock		Appelez-nous	-
49	215003415		Bin-door		Appelez-nous	-
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*25882	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
