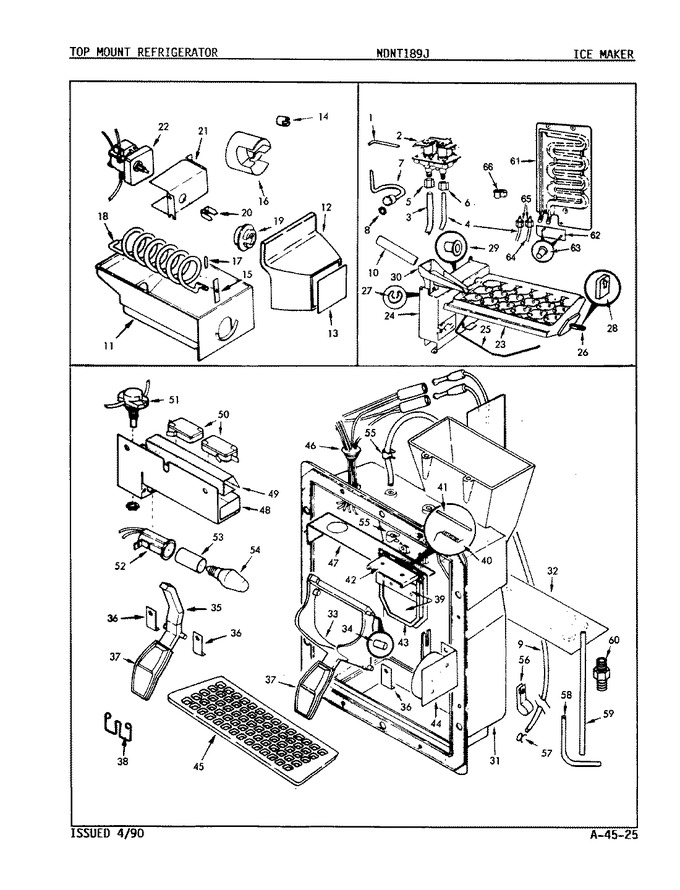

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Doors
02 - Freezer Compartment
03 - Ice Maker
04 - Unit Compartment & System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60333-3 | Clamp, Spring |
|
- | |||||
| 1 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 1 | 66758-2 | Tube |
|
- | |||||
| 1 | 53516-2 | Clamp |
|
- | |||||
| 2 | 401018-1 | Screw |
|
- | |||||
| 2 | 56595-3 | Valve, Water |
|
- | |||||
| 3 | 55603-8 | Tubing |
|
- | |||||
| 4 | WPB5705307 | Tubing (Replaces: 55602-31) |
|
$ 11.19 | |||||
| 5 | 55604-1 | Nut, Compression (5/16``) |
|
- | |||||
| 6 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 7 | 60219-1 | Inlet Tubing Assembly |
|
- | |||||
| 8 | 24685-5 | Washer, Inlet Tubing Nut |
|
- | |||||
| 9 | WPB5705307 | Tubing (Replaces: 55602-3) |
|
$ 11.19 | |||||
| 10 | 58461-3 | Tube, Fill |
|
- | |||||
| 11 | 66446-1 | Bin, Storage |
|
- | |||||
| 12 | WP1163283 | Screw (Replaces: 405022-103) |
|
$ 6.47 | |||||
| 12 | 66205-1 | Ice Disp Front |
|
- | |||||
| 13 | 68131-14 | Insert |
|
- | |||||
| 14 | 66098-1 | Nut, Auger |
|
- | |||||
| 15 | 63084-1 | Hub, Reinforcing |
|
- | |||||
| 16 | 66448-1 | Impeller, Auger |
|
- | |||||
| 17 | 63071-1 | Pin, Auger |
|
- | |||||
| 18 | 66436-1 | Auger |
|
- | |||||
| 19 | 63017-1 | Ring, Drive |
|
- | |||||
| 20 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) |
|
Immediately | $ 62.02 | ||||
| 21 | WP488234 | Screw (Replaces: 406026-103) |
|
$ 6.07 | |||||
| 21 | 65368-2 | Motor Mtg Brkt |
|
- | |||||
| 22 | 65579-1 | Motor Mtg Shim |
|
- | |||||
| 22 | 12001773 | Im Motor (Replaces: 64143-3) |
|
$ 312.61 | |||||
| 23 | WP59688-1A | Tray, Ice (Replaces: 59688-1) |
|
$ 18.71 | |||||
| 24 | RA43714-8 | Mechanism, Ice Maker |
|
- | |||||
| 24 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 25 | 60467-1 | Sensor Arm |
|
- | |||||
| 26 | 65319-1 | Shaft, Drive |
|
- | |||||
| 27 | 58706-1 | Ring, Retainer |
|
- | |||||
| 28 | 65318-1 | Clip, Drive Shaft |
|
$ 23.83 | |||||
| 29 | 65317-1 | Spacer |
|
- | |||||
| 30 | 405009-103 | Screw |
|
- | |||||
| 30 | 53748-1 | Spout, Fill |
|
- | |||||
| 31 | 63000-5 | Dispenser, Water |
|
- | |||||
| 31 | 405022-1 | Screw |
|
- | |||||
| 32 | 60508-1 | Heater |
|
- | |||||
| 33 | 66620-1 | Actuator Arm (ice) |
|
$ 37.54 | |||||
| 34 | 55602-21 | Tubing, Arm Pins |
|
- | |||||
| 35 | 66618-1 | Actuator Arm (water) |
|
$ 41.04 | |||||
| 35 | 66616-1 | Cover |
|
- | |||||
| 36 | 63035-2 | Clip |
|
- | |||||
| 37 | 63066-1 | Pad, Arm |
|
$ 26.40 | |||||
| 37 | 402015-103 | Screw, Ice Door |
|
- | |||||
| 38 | 63306-1 | Spring |
|
- | |||||
| 39 | RA43825-1 | Door Assy., Ice |
|
- | |||||
| 40 | 63428-1 | Spring, Ice Door |
|
- | |||||
| 41 | 63053-1 | Pin, Ice Door |
|
- | |||||
| 42 | 63014-1 | Bracket, Ice Door |
|
- | |||||
| 42 | 402015-103 | Screw, Ice Door |
|
- | |||||
| 43 | 63089-2 | Insulation |
|
- | |||||
| 43 | 66007-1 | Boot, Ice Door |
|
- | |||||
| 44 | 65517-1 | Clip |
|
- | |||||
| 44 | 65212-1 | Motor, Inertia |
|
- | |||||
| 44 | 402015-103 | Screw, Ice Door |
|
- | |||||
| 45 | 63025-3 | Grille |
|
- | |||||
| 46 | 60623-1 | Wire Harness |
|
- | |||||
| 46 | 60523-1 | Wire Harness |
|
- | |||||
| 46 | 60624-1 | Wire Harness |
|
- | |||||
| 47 | 63036-1 | Foil, Barrier Front |
|
- | |||||
| 48 | 63013-2 | Bracket, Switch |
|
- | |||||
| 48 | 27116-4 | Wire Nut |
|
- | |||||
| 49 | 65333-1 | Insulator, Switch |
|
- | |||||
| 50 | 55440-2 | Switch, Ice & Water |
|
$ 11.94 | |||||
| 51 | 63040-1 | Switch, Light |
|
- | |||||
| 51 | 405071-1 | Screw |
|
- | |||||
| 52 | 63039-1 | Socket, Light |
|
- | |||||
| 53 | 401011-1 | Screw |
|
- | |||||
| 53 | 63056-1 | Seal |
|
- | |||||
| 54 | W10857122 | Bulb, Light (Replaces: 63179-1) |
|
$ 12.45 | |||||
| 55 | 60333-1 | Clamp, Spring |
|
- | |||||
| 56 | 53516-9 | Clamp |
|
- | |||||
| 57 | 9602-9 | Clamp, Tubing |
|
- | |||||
| 58 | 63038-2 | Water Line |
|
- | |||||
| 59 | 63459-2 | Instalation Kit |
|
- | |||||
| 59 | 60523-1 | Wire Harness |
|
- | |||||
| 59 | 60333-2 | Clamp, Spring |
|
- | |||||
| 59 | 60624-1 | Wire Harness |
|
- | |||||
| 59 | WP2205813 | Wire Tie (Replaces: 66223-1) |
|
$ 6.95 | |||||
| 59 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 59 | 65002-15 | Tubing, Water Line |
|
- | |||||
| 59 | 62028-4 | Spacer |
|
- | |||||
| 60 | WP2198677 | Union, Tubing (1/4``-1/4``) (Replaces: 59205-1) |
|
Immediately | $ 24.98 | ||||
| 60 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 61 | 68521-1 | Tank, Water |
|
- | |||||
| 62 | 68522-1 | Cover, Water Line Conn. |
|
- | |||||
| 63 | 29356-1 | Retainer, Nameplate |
|
- | |||||
| 64 | WPB5705307 | Tubing Plastic (Replaces: 67579-13) |
|
$ 11.19 | |||||
| 65 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 66 | 53516-2 | Clamp |
|
- |
