SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container/drive


10 - Ice Maker

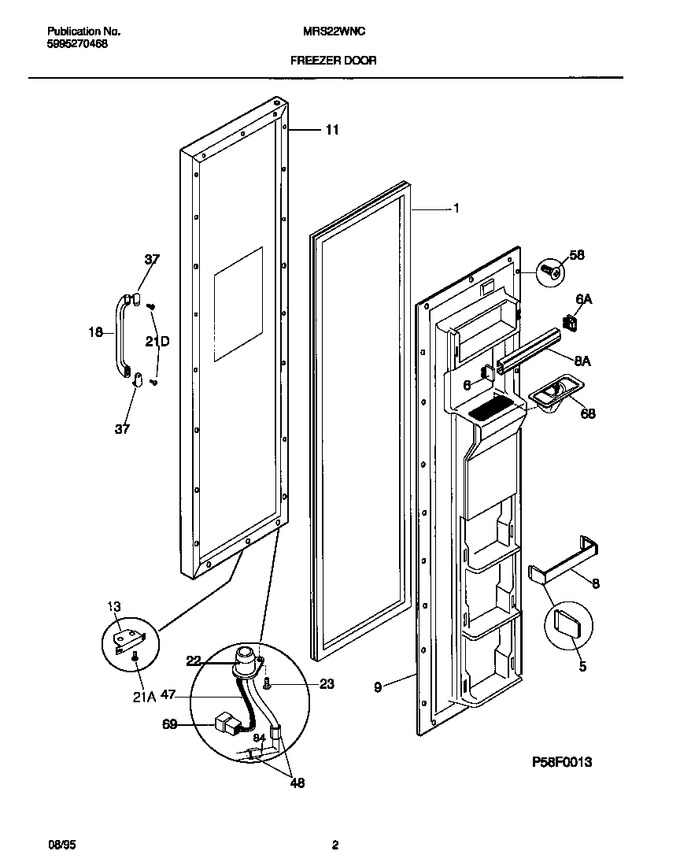

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
6	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
8	215476600		Rack-door, W/end Caps		Appelez-nous	-
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917675		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	215339618		Handle-door, Black		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215361418		Trim-handle, Black		Appelez-nous	-
47	218485300		Harness-wiring, Frzr Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
68	218020600		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
*28720	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*28721	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
22A	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt (not Illustrated)		Appelez-nous	-
6A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
8A	5303300032		Rack, Door		Appelez-nous	-
