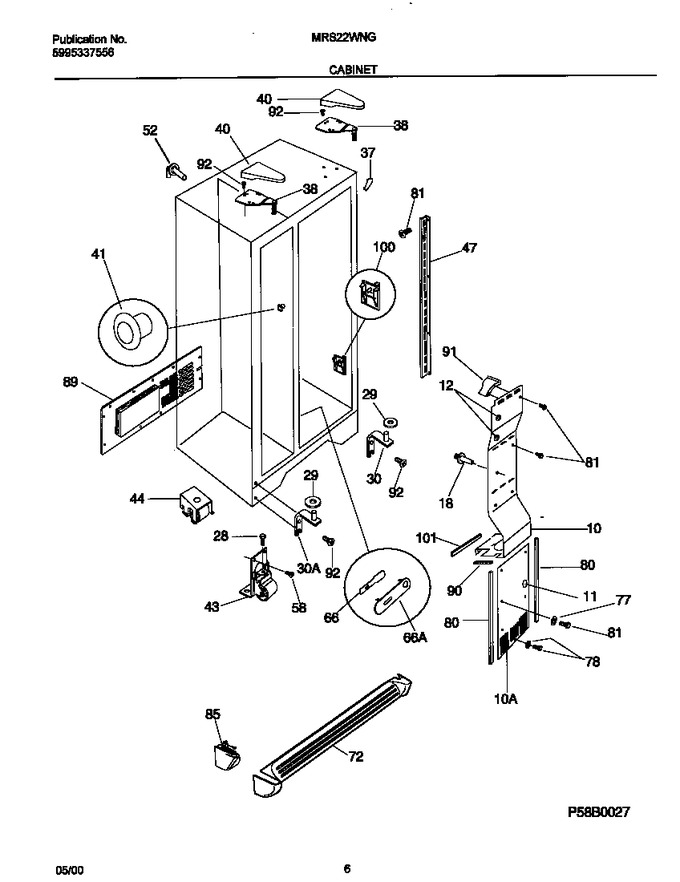

04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice And Water Disp


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215637401		Cover-evap Coil, Lower		Appelez-nous	-
10	215637602		Cover-air Duct				$ 139.65
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
18	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	5303289060		Bracket-lower Hinge,rh/lh ,w/hinge Pin		Appelez-nous	-
30	215009000		Bracket-lower Hinge,lh,w/hinge Pin		Appelez-nous	-
37	5303321081		Trim-cabinet Corner, White				$ 8.82
40	5303318773		Cover-upper Hinge, White				$ 42.47
41	5304509705		Grommet,shelf/rod Mtg ,rs   (Replaces: 5303001609)				$ 10.01
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
52	215454600		Tube-water,ice Mold Fill ,elbow				$ 81.11
58	5308002748		Screw		Appelez-nous	-
66	215050201		Damper-meat Keeper		Appelez-nous	-
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
71	218515401		Clip-grille				$ 17.72
72	218359601		Grille/kickplate, White				$ 167.98
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
85	218359801		Cover-lower Hinge, White				$ 48.72
89	215176300		Cover-machine Compt		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	218770000		Deflector-air, Air Duct Cover				$ 20.42
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
*79244	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*79245	5303289044		Support-air Duct Cvr,1.83`` Long		Appelez-nous	-
*79246	218871201		Washer,nylon ,0.363 Id W/nibs		Appelez-nous	-
*79247	215598900		Washer-flat,.691 X 1 X .05 ,zinc ,		Appelez-nous	-
*79248	218730700		Tapping Plate,lh				$ 28.08
*79249	218730800		Tapping Plate,rh		Appelez-nous	-
*79250	5304500407		Grommet,shelf Mtg ,ls   (Replaces: 5308009759)			Immediately	$ 6.38
*79251	5308017044		Screw-roller Mtg,spcl Ind Hex Hd ,				$ 6.34
*79252	215608400		Screw-clip/grille,pan Head ,		Appelez-nous	-
*79253	5308009617		Washer,ext Tooth Lock ,no.10 ,grounding		Appelez-nous	-
*79254	5303289036		Gasket-coil Cover,(2)		Appelez-nous	-
*79255	5303322647		Tape-foam		Appelez-nous	-
*79256	218663103		Gasket-air Duct Cvr		Appelez-nous	-
*79257	218836401		Deflector-air,ice Maker		Appelez-nous	-
*79259	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
*79260	5308016571		Plug-button,cab Liner Holes				$ 4.79
101A	215305702		Seal-foam		Appelez-nous	-
101B	218663102		Gasket-air Duct/liner		Appelez-nous	-
38A	218215213		Bracket-upper Hinge, With Closer, White		Appelez-nous	-
38B	218215215		Bracket-upper Hinge, With Closer, White		Appelez-nous	-
80A	218249801		Seal-coil Cover,(2)		Appelez-nous	-
80B	218249802		Seal-coil Cover, (2)		Appelez-nous	-
