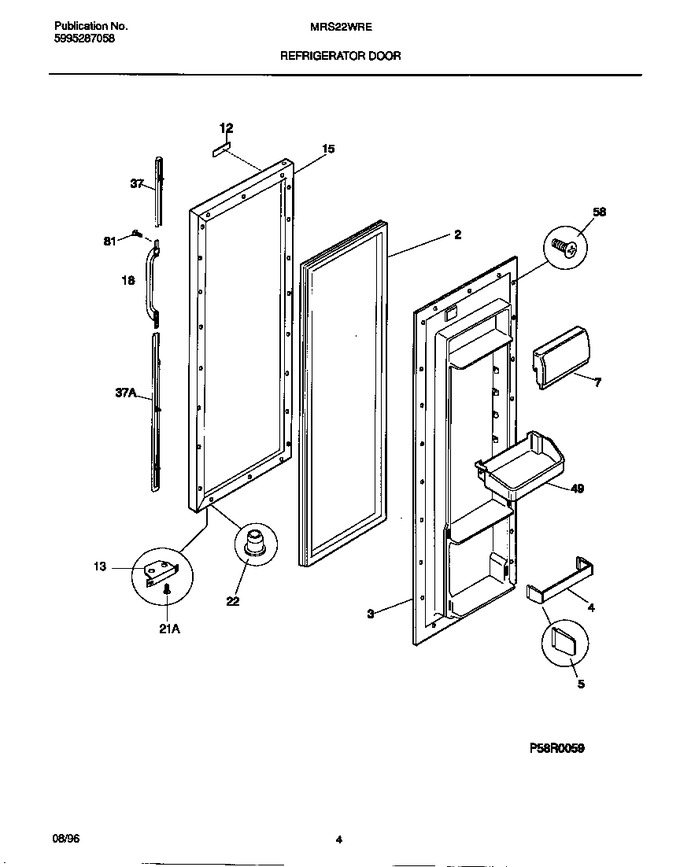

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215390401		Panel-inner Door,refr		Appelez-nous	-
4	215366002		Rack-door   (Replaces: 218027058)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215029914		Door-dairy		Appelez-nous	-
12	218428204		Frame-nameplate, White		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917871		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	218668403		Handle-door, Black Optional		Appelez-nous	-
18	218668401		Handle-door, White				$ 74.97
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	215867086		Trim-handle, Black, Lower, With Snap Locks Optional		Appelez-nous	-
37	215867087		Trim-handle, Black, Upper, With Snap Lock Optional		Appelez-nous	-
37	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
49	215003417		Bin-door		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*27762	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
