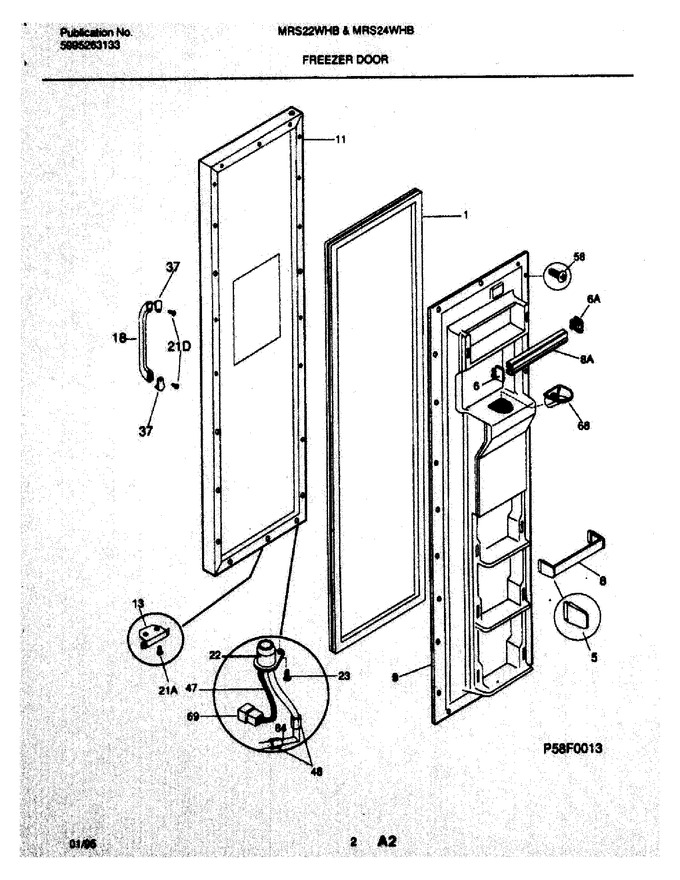

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
6	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
8	215476600		Rack, Door, W/end Caps, (3)		Appelez-nous	-
11	215655801		Panel, Frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	215339601		Handle-door, White		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215361401		Trim, Handle, White		Appelez-nous	-
47	215294000		Harness-wiring,frzr Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
58	5308002746		Screw, Hex Washer Head, 8-15(a) X 1/2, Special		Appelez-nous	-
68	218036400		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21D	215659600		Screw-handle Mfg,hex Head,10-32 X 1/2		Appelez-nous	-
6A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
8A	5303300032		Rack, Door		Appelez-nous	-
