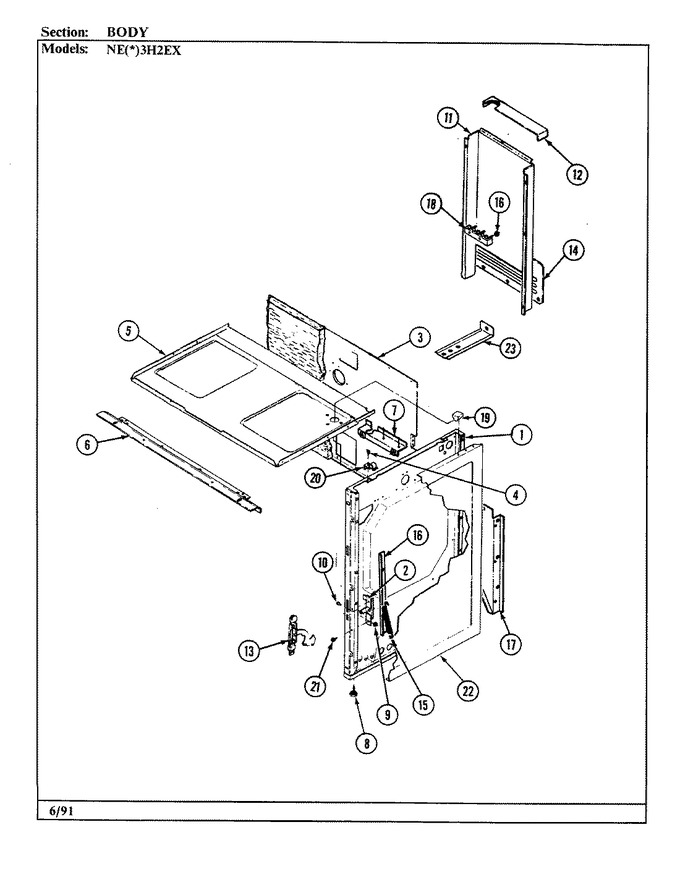

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4009W053-80 | Lining, Inner Side | 1 |
|
- | ||||
| 1 | 7103P045-60 | Nut, Nylon | 1 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 2 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 2 | 8016P008-60 | Glide, Oven Door Hinge | 1 |
|
- | ||||
| 2 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 3 | 4002F160-80 | Back, Main | 1 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 5 | 4011F128-23 | Bottom, Burner Box | 1 |
|
- | ||||
| 5 | 4005F016-80 | Cover, Back Burner Box | 1 |
|
- | ||||
| 6 | 4012F022-80 | Front, Burner Box Bottom | 1 |
|
- | ||||
| 6 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 7 | 3605F146-51 | Plate, Conduit Reinforcement | 1 |
|
$ 6.06 | ||||
| 7 | 3605F156-51 | Plate,conduit | 1 |
|
- | ||||
| 8 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 9 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 10 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 11 | 4011F051-80 | Housing, Wire | 1 |
|
- | ||||
| 12 | 4005F082-80 | Cover, Housing | 1 |
|
- | ||||
| 13 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 14 | 4005F362-51 | Cover Access | 1 |
|
- | ||||
| 15 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 1 |
|
$ 16.55 | ||||
| 16 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 1 |
|
Immediately | $ 6.47 | |||
| 17 | 3802F008-80 | Brace, Back-left | 1 |
|
- | ||||
| 17 | 3802F010-80 | Brace, Back-right | 1 |
|
- | ||||
| 18 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 19 | 8003P011-60 | Spacer, Main Top | 1 |
|
- | ||||
| 20 | 7112P073-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P112-60) | 1 |
|
$ 4.29 | ||||
| 22 | 2618F073-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 23 | 3801F198-45 | Bracket, Tie Down | 1 |
|
- | ||||
| 23 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 22 |
|
Immediately | $ 4.69 | |||
| 23 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 22 |
|
$ 26.33 |
