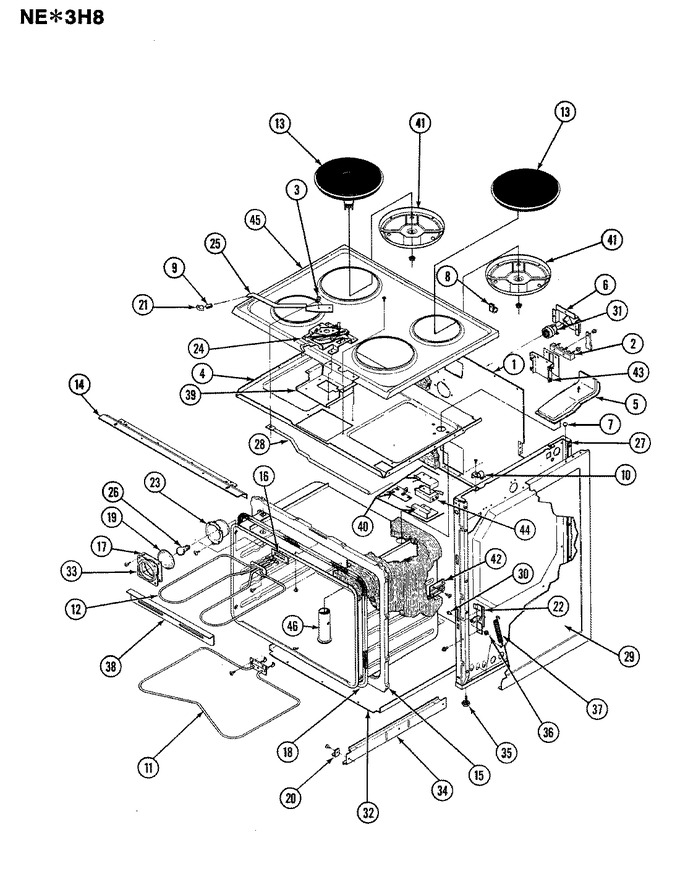

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F103-80 | Back, Main | 1 |
|
- | ||||
| 1 | 4002F086-80 | Back, Main | 1 |
|
- | ||||
| 2 | 7401P031-60 | Block, Fuse | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 7116P002-60 | Bolt, Door Lock | 1 |
|
- | ||||
| 4 | 4011F129-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 5 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 5 | 4006W056-45 | Box Assy, Vent | 1 |
|
- | ||||
| 5 | 3802F046-80 | Brace, Main Top | 1 |
|
- | ||||
| 5 | 3802F003-80 | Brace | 1 |
|
- | ||||
| 5 | 3801F093-51 | Bracket | 1 |
|
- | ||||
| 6 | 3801F024-51 | Bracket | 1 |
|
- | ||||
| 7 | 8010P048-60 | Spacer, Main Top | 1 |
|
- | ||||
| 8 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 9 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 9 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 10 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 10 | 4005F179-80 | Cover, Fan Assy | 1 |
|
- | ||||
| 11 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 12 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 13 | 7427P005-60 | Fan Assembly | 1 |
|
- | ||||
| 13 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 1 |
|
$ 244.76 | ||||
| 13 | 7406P024-60 | Element, Solid Disc (8``) | 1 |
|
- | ||||
| 14 | 4012F017-80 | Front, Burner Box Bottom | 1 |
|
- | ||||
| 15 | 7416P005-60 | Fuse, 125v 20a | 1 |
|
- | ||||
| 15 | 2201F033-23 | Front, Oven | 1 |
|
- | ||||
| 15 | 7416P006-60 | Fuse, 125v 15a | 1 |
|
- | ||||
| 16 | 7201P003-60 | Gasket, Element | 1 |
|
- | ||||
| 16 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 17 | 7201P015-60 | Gasket, Lamp Retainer | 1 |
|
- | ||||
| 18 | 7201P036-60 | Gasket, Oven | 1 |
|
$ 118.90 | ||||
| 19 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 20 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 20 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 21 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 21 | 7701P068-60 | Handle, Latch (blk) | 1 |
|
- | ||||
| 22 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 22 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 23 | 4001F020-15 | Housing | 1 |
|
- | ||||
| 23 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 24 | 8002P020-60 | Catch Assy. | 1 |
|
- | ||||
| 25 | 8009P009-60 | Lever, Door Lock | 1 |
|
- | ||||
| 26 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 27 | 4009W033-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 27 | 4009W029-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 28 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 28 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 29 | 2618F052-71 | Panel, Side (wht) | 1 |
|
- | ||||
| 29 | 5700A224-74 | Panel, Side Rt Alm | 1 |
|
- | ||||
| 29 | 5700A223-71 | Panel, Side Lf Wht | 1 |
|
- | ||||
| 29 | 5700A224-71 | Panel, Side Rt Wht | 1 |
|
- | ||||
| 29 | 5700A223-74 | Panel, Side Lf Alm | 1 |
|
- | ||||
| 29 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 30 | 3605F031-80 | Plate, Conduit | 1-32 |
|
- | ||||
| 30 | 3605F148-80 | Plate, Conduit | 33 |
|
- | ||||
| 30 | W10124350 | Not Required Part Or See Note Plate, Conduit Reinforcement | 1-32 |
|
- | ||||
| 30 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 30 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 30 | 3605F146-51 | Plate, Conduit Reinforcement | 33 |
|
$ 6.06 | ||||
| 31 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 32 | 3804F093-80 | Retainer, Bottom Ins. | 1 |
|
- | ||||
| 33 | 3804F012-45 | Retainer, Lamp Guard | 1 |
|
- | ||||
| 33 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 34 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 34 | 3406J007 | Runner, Outer | 1 |
|
- | ||||
| 34 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 33 |
|
Immediately | $ 6.85 | |||
| 34 | W10124350 | Not Required Part Or See Note | 1-32 |
|
- | ||||
| 35 | 4005F013-80 | Shield | 1 |
|
- | ||||
| 35 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 35 | 3604F007-80 | Shield, Light Receptacle | 1 |
|
- | ||||
| 36 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 37 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 37 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 38 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 39 | 3807F195 | Support, Latch | 1 |
|
- | ||||
| 40 | 3807F193-45 | Support, Lock Switch | 1 |
|
- | ||||
| 41 | 8004P011-60 | Support, 6`` | 1 |
|
- | ||||
| 41 | 8004P012-60 | Support, 8`` | 1 |
|
- | ||||
| 42 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 43 | 3807F157-80 | Support, Terminal Block | 1 |
|
- | ||||
| 44 | 7403P045-60 | Switch, Door Lock | 1 |
|
- | ||||
| 44 | 7403P077-60 | Switch----na | 1 |
|
- | ||||
| 45 | 2002W032-04 | Top Assy, Main | 1 |
|
- | ||||
| 46 | 7506P085-60 | Tube, Wire | 1 |
|
- | ||||
| 46 | 8026P011-60 | Tube, Oven Vent | 1 |
|
- |
