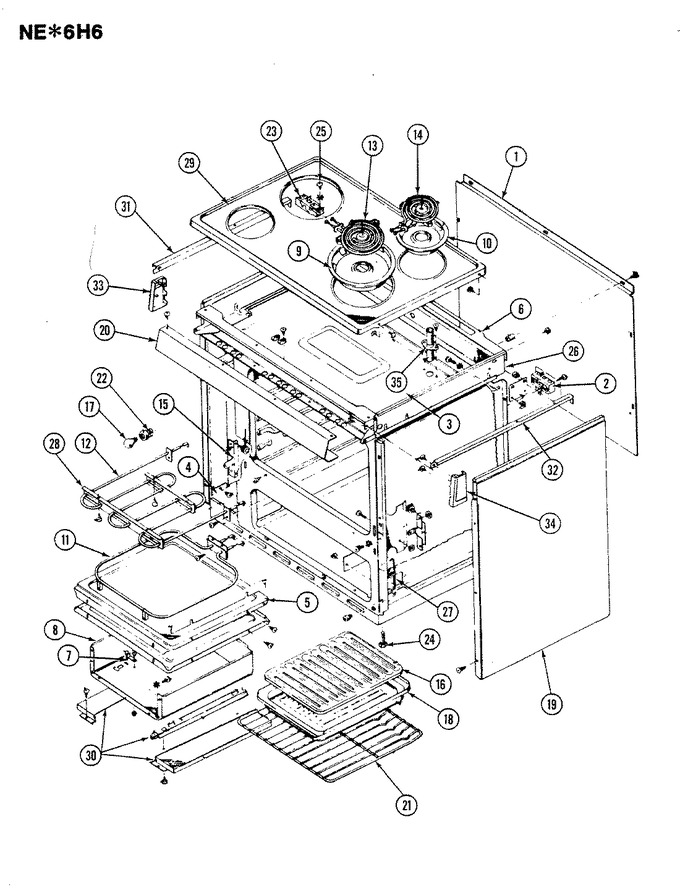

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F049-20 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 0237118 | Bottom, Burner Box | 1 |
|
- | ||||
| 4 | 4011F131-20 | Bottom, Compartment | 1 |
|
- | ||||
| 5 | 3802F072-20 | Brace, Compartment Top | 1 |
|
- | ||||
| 5 | 2205F006-16 | Bottom, Oven | 1 |
|
- | ||||
| 6 | 3802F038-23 | Brace | 1 |
|
- | ||||
| 6 | 3801F053-34 | Bracket | 1 |
|
- | ||||
| 7 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 7 | 7112P020-60 | Clip, Oven Front | 1 |
|
- | ||||
| 7 | 8002P001-60 | Catch | 1 |
|
- | ||||
| 7 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 8 | 3405F004-20 | Drawer Assy. | 1 |
|
- | ||||
| 9 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 3 |
|
Immediately | $ 15.56 | |||
| 9 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P001-60) | 1-2 |
|
Immediately | $ 15.56 | |||
| 10 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P002-60) | 1-2 |
|
Immediately | $ 12.05 | |||
| 10 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 3 |
|
Immediately | $ 12.05 | |||
| 11 | 7406P011-60 | Element | 1 |
|
- | ||||
| 12 | 7406P005-60 | Element Broil (large) | 1 |
|
- | ||||
| 13 | WP3191454 | Element (8``) (Replaces: 7406P015-60) | 1 |
|
$ 163.63 | ||||
| 14 | WP660532 | Element (6``) (Replaces: 7406P018-60) | 1 |
|
Immediately | $ 36.90 | |||
| 15 | 3418F031-34 | Hinge, Oven Door | 1 |
|
- | ||||
| 16 | 4396923 | Insert (Replaces: 3413F002-11) | 1 |
|
Immediately | $ 52.04 | |||
| 17 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 18 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 1 |
|
Immediately | $ 52.04 | |||
| 19 | 2618F013-74 | Panel, Side Almond | 1 |
|
- | ||||
| 20 | 2614F001-84 | Panel, Upper Front | 1 |
|
- | ||||
| 20 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 21 | 7801P013-60 | Rack, Oven | 1 |
|
- | ||||
| 22 | 7408P001-60 | Recept, Oven Light | 1 |
|
- | ||||
| 23 | 3804F050-20 | Retainer, Light Guard | 1 |
|
- | ||||
| 23 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 1 |
|
Immediately | $ 14.48 | |||
| 23 | 3602F002-51 | Reflector - Oven Light | 1 |
|
- | ||||
| 24 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 25 | 3604F037-44 | Cover | 1 |
|
$ 30.78 | ||||
| 25 | WP74004005 | Screw (Replaces: 1986326) | 1 |
|
$ 6.95 | ||||
| 26 | 4016F006-80 | Side, Burner Box Left | 1 |
|
- | ||||
| 26 | 4016F002-80 | Side, Burner Box Right | 1 |
|
- | ||||
| 27 | 7803P003-60 | Spring | 1 |
|
- | ||||
| 28 | 7405P024-60 | Terminal, Receptacle | 1 |
|
- | ||||
| 28 | 3807F176-13 | Support | 1 |
|
- | ||||
| 29 | 2002W013-04 | Top Assy, Main | 1 |
|
- | ||||
| 30 | 3807A003-80 | Track, Broiler Door | 1 |
|
- | ||||
| 31 | 7720P056-60 | Trim | 1 |
|
- | ||||
| 32 | 7720P059-60 | Trim | 1 |
|
- | ||||
| 33 | 7720P055-60 | Trim, Left | 1 |
|
- | ||||
| 34 | 7720P058-60 | Trim, Right | 1 |
|
- | ||||
| 35 | 8026P002-60 | Tube | 1 |
|
- | ||||
| 35 | 8110P087-60 | Manual, Use & Care | 1 |
|
- |
